GN 7336.7 Clamping Knobs with Indexing Plunger

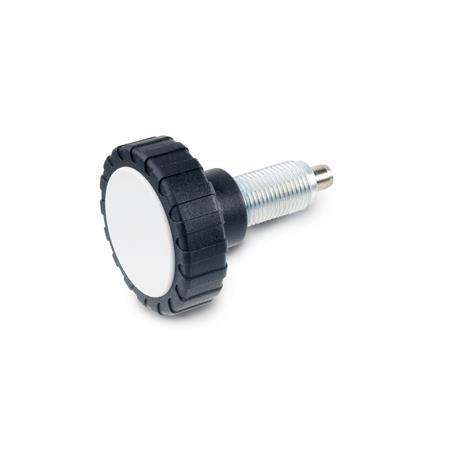

Clamping Knobs with Indexing Plunger GN 7336.7 thumbnail

Clamping Knobs with Indexing Plunger GN 7336.7 sketch

Show filter

d₁	d₂	d₃ Pin -0,02/-0,04 Bore G7	d₄	d₅	l₁	l₂	l₃	l₄ min.	A/F	Spring load in N ≈ initial	end

34	M 10 x 1	5	8,6	15,5	45	5	19	17	10	7	17
42	M 12 x 1,5	6	9,9	19	53	6	21	19	12	9	24
53	M 12 x 1,5	6	9,9	22,5	59	6	21	19	12	9	24
53	M 16 x 1,5	8	13,9	22,5	68	8	28	26	16	11	30

Filter combination produces no result.

Specification

Knurled knob 7336
Plastic (Polyamide PA)
Black, matte

Cover cap
Plastic (Polyamide PA)
Light gray, matte

Fixing thread steel
Zinc plated, blue passivated

Plunger pin
Stainless steel AISI 303

Application Video

List of Indexing Plunger Types

Load Rating Information

ISO Fundamental Tolerances

Metric ISO fine thread DIN 13

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Information

Clamping knobs with indexing plunger GN 7336.7 are used for positioning, securing and clamping adjusting elements at the same time.

The axial movement of the handle (pulling) pulls the indexing pin from the engaged position against the spring force, with the star knob at the same time remaining connected with form-lock to the clamping screw via a hexagonal element, allowing both clamping and releasing.
