with Sealing Disk

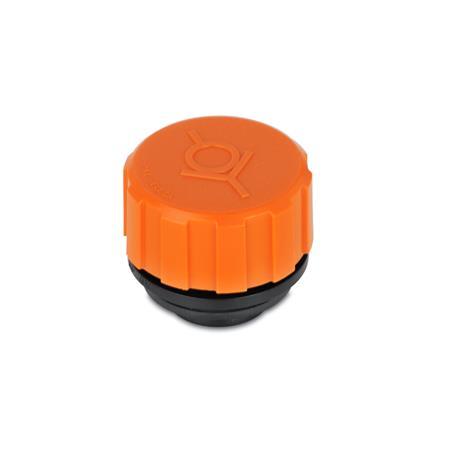

GN 552.1 Breather Caps
ELESA Original design SFV.

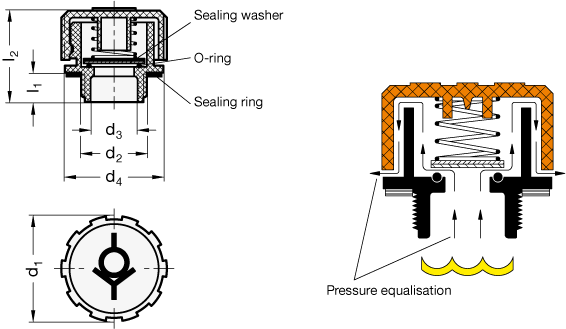

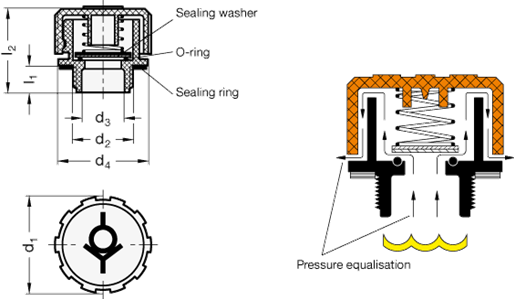

| d1 | d2 | d1 | Opening pressure in mbar ±20 % | d3 | d4 | l1 ≈ | l2 ≈ | ||
|---|---|---|---|---|---|---|---|---|---|
| 31 | G 1/4 | - | - | 10 | 100 | 8 | 30 | 10 | 30 |
| 31 | G 3/8 | M 16 x 1,5 | M 18 x 1,5 | 10 | 100 | 10 | 30 | 10 | 30 |
| 31 | G 1/2 | M 20 x 1,5 | M 22 x 1,5 | 10 | 100 | 10 | 30 | 10 | 30 |
| 42 | G 3/4 | - | - | 10 | 100 | 16 | 41 | 12 | 37 |
| 42 | G 1 | - | - | 10 | 100 | 16 | 41 | 12 | 37 |
Filter combination produces no result.
Specification
Plastic
O-Ring / Seal
Rubber NBR (Perbunan®)
Pressure spring
Stainless steel
RoHS
- Temperature resistant up to 100 °C
- Upper part (cap)
Orange, RAL 2004OR
- Lower part (threaded part)
Black - Sealing disk, black
O-Ring / Seal
Rubber NBR (Perbunan®)
Pressure spring
Stainless steel
RoHS
On request
Breather caps with other opening pressures
Information
Breather caps GN 552.1 with sealing disk vents the tank after a lower pressure of 10 or 100 mbar respectively is reached.
The sealing disk prevents the contamination of the oil from the outside (dust) and an air filter is not required.
This also ensures that no oil can spill to the outside, neither by excessive agitation in the tank nor during transport.
see also...
| How to order |
| ||||||
GN 552.1-31-G3/8-10 |
