Plastic

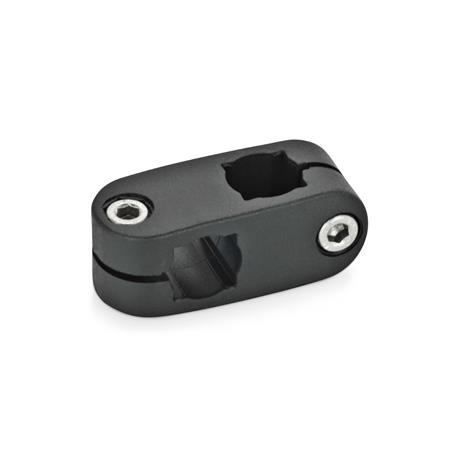

GN 174 Two-Way Mounting Clamps
ELESA original design MSX.
| d1 Bore | d2 Bore | k | Length l | m | s1 Square V | s2 Square V |
|---|---|---|---|---|---|---|
| B 10 | B 10 | 21 | 52 | 17 | V 8 | V 8 |
| B 12 | B 12 | 21 | 52 | 17 | V 10 | V 10 |
| B 14 | B 14 | 21 | 52 | 17 | V 12 | V 12 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide)
Socket cap screws DIN 912
Stainless steel AISI 304
Hexagon screws ISO 4032
Stainless steel AISI 304
RoHS
Technopolymer (Polyamide)
- Glass fiber reinforced
- Temperature resistant up to 60° C
- Black, matte finish
Socket cap screws DIN 912
Stainless steel AISI 304
Hexagon screws ISO 4032
Stainless steel AISI 304
RoHS
Information
| How to order |
| ||||
GN 174-B10-B10 |
RoHS compliant:
-
-
Weight:
-
-
