for Latches

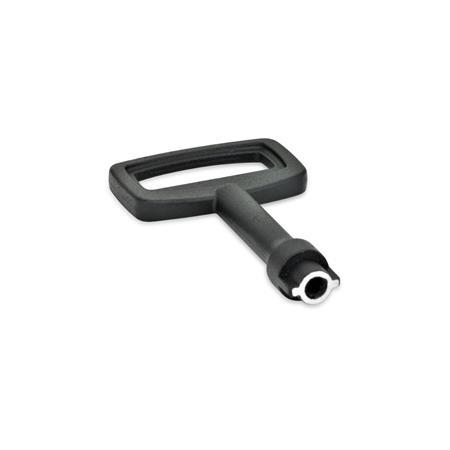

GN 119.2 Socket Keys
Type
| DK6,5 | Triangle h=6.5 |
| DK7 | Triangle h=7 |
| VK6 | Operation with square spindle |
| VK7 | Operation with square spindle |
| VK8 | Operation with square spindle |
| VDE5 | Operation with double bit d2=5,6 |
| SCH | Operation with blade / slot |
| l1 | l2 | b | d1 | d2 | h | s | A/F | Type | for locks | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55 | 34 | 32 | 11,4 | - | 6,5 | 1,3 | 6 | DK6,5 | VK6 | SCH | - | GN 115.1 / GN 115.6 |
| 86 | 53 | 50 | 14 | 5,6 | 7 | 1,8 | 7 | DK7 | VK7 | VDE5 | SCH | GN 115 / GN 116.1 / GN 119 / GN 516 / GN 516.1 / GN 516.5 |
| 86 | 53 | 50 | 14 | - | - | - | 8 | VK8 | - | - | GN 115 / GN 116.1 / GN 119 / GN 516 / GN 516.1 / GN 516.5 | |
Filter combination produces no result.
Specification
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
RoHS
Powder coated
Black, RAL 9005, textured finishSW
RoHS
Information
| How to order |
| ||||||
GN 119.2-86-VK8-SW |
RoHS compliant:
-
-
Weight:
-
-
