Seal Overlying, Plastic, with DIN-Re-Fill Symbol

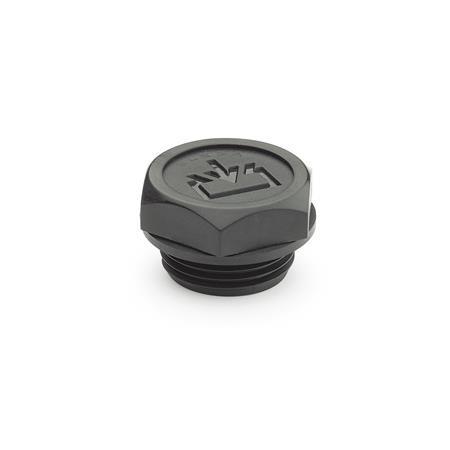

GN 747 Threaded Plugs, with / without dipstick
ELESA Original design TCD.
Type
| A | Without dipstick |
| B | With dipstick |
Coding
| 1 | Without vent drilling |
| 2 | With vent drilling |

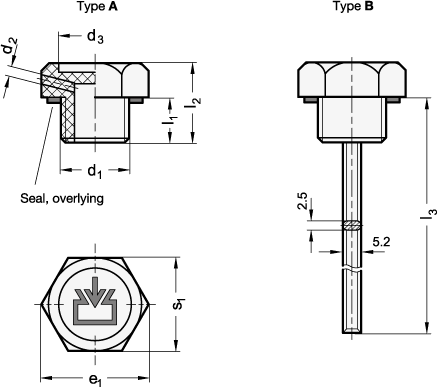

| d1 | d2 Vent drilling | d3 | e1 ≈ | l1 | l2 | l3 | s1 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| G 1/8* | M 10 x 1,5* | M 12 x 1,5* | - | 2 | 15 | 21,5 | 9 | 16 | 120 | 19 |
| G 1/4* | M 14 x 1,5* | - | - | 2 | 15 | 21,5 | 9 | 16 | 120 | 19 |
| G 3/8 | M 16 x 1,5 | - | - | 2 | 17 | 25 | 9 | 16 | 120 | 22 |
| G 1/2 | M 18 x 1,5 | M 20 x 1,5 | - | 2 | 20,5 | 29,5 | 11 | 18 | 195 | 26 |
| G 3/4 | M 22 x 1,5 | M 25 x 1,5 | M 26 x 1,5 | 2 | 25 | 36,5 | 12 | 20 | 195 | 32 |
| G 1 | M 35 x 1,5 | - | - | 2 | 31 | 44 | 13 | 22 | 195 | 38 |
| G 1 1/4 | M 40 x 1,5 | - | - | 2 | 38 | 52,5 | 14 | 24 | 195 | 46 |
| G 1 1/2 | - | - | - | 2 | 46 | 63 | 15 | 26 | 195 | 55 |
Filter combination produces no result.
* These sizes are not available as Type B-2.
Specification
Plastic (Polyamide PA)
Seal
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
- Glass fiber reinforced
- Temperature resistant up to 100 °C
- Black, matte finish
Seal
Rubber NBR (Perbunan®)
Dipstick
Steel, phosphated
RoHS
On request
Fluid level markings / special lengths
see GN 109
see GN 109
Information
The dipstick of the threaded plugs GN 747 has two flat sides on which the MAX-MIN oil levels can easily be marked (see GN 109).
| How to order |
| ||||||
GN 747-M20x1,5-A-1 |
