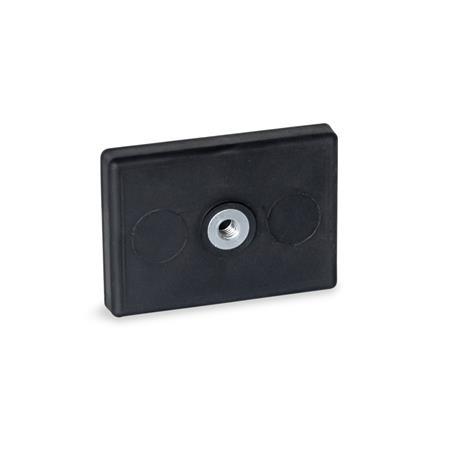

Rectangular-Shaped, with Internal Thread, with Rubber Jacket
GN 57.1 Retaining Magnets
Type
| A | With 1 internal thread |
| B | With 2 internalthreads |
| b | l1 | d1 | d2 | h1 | h2 | l2 | t | Nominal magnetic forces in N Type A | Type B |
|---|---|---|---|---|---|---|---|---|---|
| 31 | 43 | M 4 | 10 | 6 | 1 | 25 | 4,5 | 105 | 146 |
Filter combination produces no result.
Specification
Steel part
Zinc plated
Material of the magnet
NdFeB
Neodymium, iron, boron
Temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
≈ 80 Shore A
RoHS
Zinc plated
Material of the magnet
NdFeB
Neodymium, iron, boron
Temperature resistant up to 80 °C
Rubber jacket
Elastomer (TPE)
≈ 80 Shore A
- BlackSW
- WhiteWS
RoHS
Accessory
Holding Disks GN 70Adhesive Disks GN 70.1
On request
Other colors
Other Shore hardnesses
Other Shore hardnesses
Information
The retaining magnets GN 57.1 with rubber jacket form a system together with the steel part that shields and strengthens the magnet, optimally concentrating the magnetic flux on the rubberized magnetic surface.
The rubber protects sensitive surfaces from being damaged by the magnet and also delivers a high friction coefficient, resulting in high lateral displacement forces.
see also...
| How to order |
| ||||||||||
GN 57.1-31-43-M4-A-WS |
This could also be interesting...
GN 57.2
Retaining Magnets (rectangular-shaped, with female thread)
GN 51.5
Retaining Magnets (disc-shaped, with female thread)
GN 50.4
Retaining Magnets (disc-shaped, with female thread)
GN 52.5
Stainless Steel Retaining Magnets (rod-shaped, with threaded stud)
GN 70
Holding Disks, Steel, for Retaining Magnets
GN 70.1
Adhesive Disks, Steel, Self-Adhesive, for Retaining Magnets
