with Axial Lock, Stainless Steel Slide

GN 214.6 Stainless Steel Locking Pins, with axial lock, slide Stainelss Steel

Stainless Steel Locking Pins with axial lock slide Stainelss Steel GN 214.6 thumbnail

Stainless Steel Locking Pins with axial lock slide Stainelss Steel GN 214.6 sketch

Show filter

d₁ -0,1	l₁ +0,4 Minimum size															a	b	d₂	d₃	d₄	d₅	l₂	l₃

6	16	20	25	30	35	40	45	50	60	70	80	-	-	-	-	2,3	0,5	7,5 +0,5	5,9	12	23	7	38
8	16	20	25	30	35	40	45	50	60	70	80	90	100	-	-	2,8	0,6	10 +0,5	7,9	12	23	8,4	38
10	15	20	25	30	35	40	45	50	60	70	80	90	100	110	120	3,3	1	12 +1	9,9	16	28	9,8	42
12	20	25	30	35	40	45	50	60	70	80	90	100	110	120	-	3,8	1	14 +1	11,9	16	28	11,3	42
16	30	35	40	45	50	60	70	80	90	100	110	120	130	140	150	4,8	1,2	19 +1	15,9	20	32	14,2	46,5

Filter combination produces no result.

Specification

Plunger
Stainless steel AISI 303

Pawl
Stainless steel sheet metal
AISI 304

Slide / Push button
Stainless steel AISI 303

Lifting ring
Stainless steel AISI 301

Pressure spring
Stainless steel AISI 301

Load Capacity of Ball Lock Pins / Locking Pins

Stainless Steel Characteristics

RoHS

Accessory

Ball Chains GN 111

Stainless Steel Ball Chains GN 111.5

Retaining Cables GN 111.2

Spiral Retaining Cables GN 111.4

Information

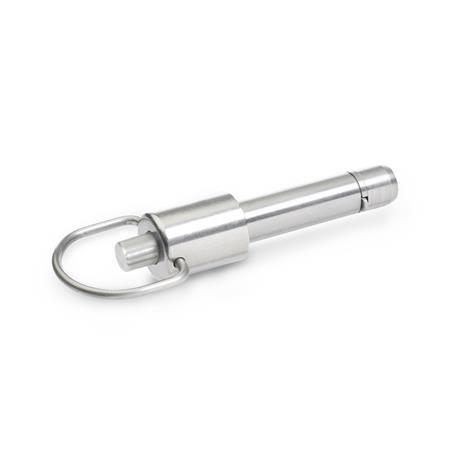

Stainless steel locking pins with axial lock GN 214.6 are used for quick fixing, connecting and locking of various jig and fixture systems. A typical application is location pins which have to be often removed and re-placed again.

The rectangular pawls made of stainless steel sheet metal keep the locking pin in an axial position in the bore. It can be retracted by pressing the button, once released it returns the pressure spring into its locking position.

The version with swiveling lifting ring is ideal for the use in confined spaces.

The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
