with Loss Protection, Bushing Stainless Steel
GN 5342.13 Three-Lobed Knobs
ELESA original design VTT-SST-LP
Loss protection
| P | With plastic ball chain |
| d1 | d2 | d3 | h1 | h2 | h3 | r | t min. |
|---|---|---|---|---|---|---|---|
| 25 | M 5 | 12 | 20 | 10 | 2,4 | 20 | 10 |
| 32 | M 6 | 14 | 23 | 11,5 | 2,7 | 21 | 10 |
| 40 | M 8 | 16 | 27 | 13,5 | 3,2 | 21,5 | 13 |
| 50 | M 10 | 19 | 30 | 15 | 3,6 | 22,5 | 17 |
Filter combination produces no result.
Specification
Plastic
Bushing
Stainless steel AISI 304
Retaining ring / ball chain
Technoplymer (Polyacetal POM)
Key ring
Stainless steel
Chemically blackened
RoHS
- Glass fiber reinforced
- Temperature resistant up to 60 °C
- Black, matte finish
Bushing
Stainless steel AISI 304
Retaining ring / ball chain
Technoplymer (Polyacetal POM)
Key ring
Stainless steel
Chemically blackened
RoHS
On request
With bushing brass
Plastic ball chains with other lengths
Plastic ball chains with other lengths
Information

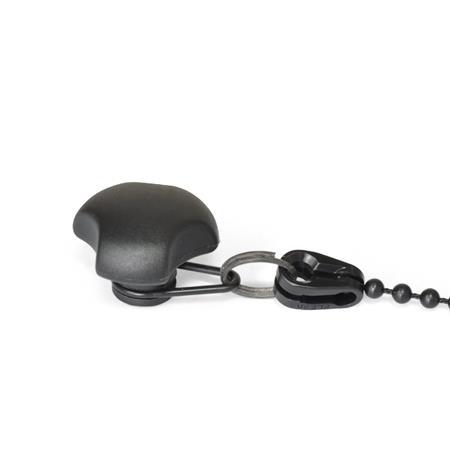

Three-lobed knobs GN 5342.13 can be captively attached to a base element with the help of a ball chain.
The star knobs are supplied ready assembled (with a plastic ball chain).
see also...
| How to order |
| ||||||
GN 5342.13-40-M8-P |
