GN 738.5 Stainless Steel Magnetic Plugs

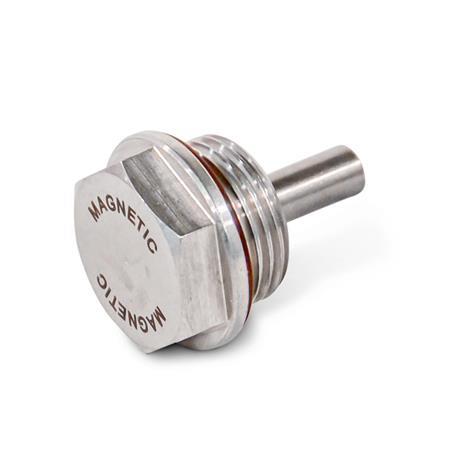

Stainless Steel Magnetic Plugs GN 738.5 thumbnail

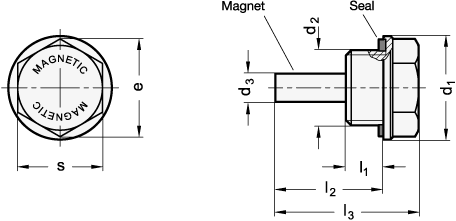

Stainless Steel Magnetic Plugs GN 738.5 sketch

Show filter

d₁			d₃	e ≈	l₁	l₂	l₃	s

19	G 1/4	M 14 x 1,5	6	17,3	8	23	30,5	15
22	G 3/8	M 16 x 1,5	6	20,8	8	23	30,5	18
26	G 1/2	M 20 x 1,5	6	24,3	8,5	23,5	31	21
32	G 3/4	M 26 x 1,5	6	31,3	9	24	32	27
40	G 1	M 33 x 1,5	6	37	11	26	34,5	32

Filter combination produces no result.

Specification

Stainless steel AISI 316 LHC
Plain, tumbled

Magnet
Alloy: AINiCo

Seal
Fluorine rubber (FPM / FKM)

Brown
Temperature resistant up to 180 °C

Magnet Characteristics

Elastomer Characteristics

Stainless Steel Characteristics

RoHS

On request

Other thread sizes

With acrylonitrile butadiene rubber (NBR) seal GN 738.4

Information

Stainless steel magnetic plugs GN 738.5 attract iron particles which might be floating in the fluid. The stainless steel makes them suitable for use in particularly aggressive environments.

To avoid breakage or demagnetization, the round magnets are fitted with a plastic distance and protection tube. This tube has to be removed prior to installing the plug.

The seal is embedded in a radial recess, and thus cannot be lost or squeezed out during tightening.

The outer diameter d₁ of stainless steel threaded plugs is matched to screw-in holes for pipe fittings according to DIN 3852.
