Rod-Shaped, with Threaded Stud

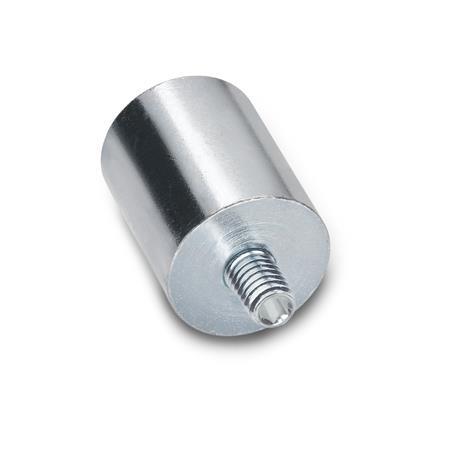

GN 52.4 Retaining Magnets

Type

E	with threaded stud

Show filter

d₁ ±0,1	d₂	h ±0,2	Length l	A/F	Nominal magnetic forces in N AN	ND

6	M 3	20	7	1,5	2	6
8	M 3	20	7	1,5	4	12
10	M 4	20	8	2	8,5	24
13	M 4	20	8	2	12	60
16	M 4	20	10	2	20	90
20	M 6	25	10	3	40	135
25	M 6	35	10	3	60	190
32	M 8	40	12	4	160	340
40	M 8	50	15	4	240	700
50	M 10	60	15	5	400	1000
63	M 12	65	20	6	660	1700

Filter combination produces no result.

Specification

Housing
Steel, zinc plated

Materials of the magnet:

AlNiCoAN
Aluminum, nickel, cobalt
Temperature resistant up to 450 °C
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C

RoHS

Accessory

Holding Disks GN 70

Adhesive Disks GN 70.1

Rubber Caps GN 70.2

Information

Retaining magnets GN 52.4 are combined with a steel housing and insulation of brass / aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
