with Two Functions

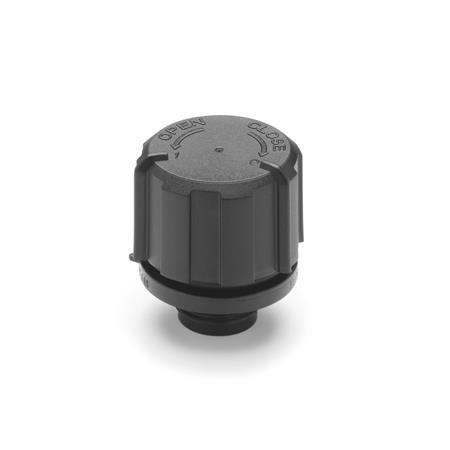

GN 556 Breather Caps
ELESA Original design SFC.
| d1 | d2 | d3 | d4 | d5 | l1 | l2 | t |
|---|---|---|---|---|---|---|---|
| 30 | G 3/8 | 29 | 3 | 9 | 9 | 33 | 5 |
Filter combination produces no result.
Specification
Plastic
O-ring
Rubber NBR (Perbunan®)
Air filter PU-foam (Polyurethane)
Filtration 10 µm
RoHS
- Temperature resistant up to 80 °C
- Black, matte finish
- Upper part (cap)
Polyamide (PA) - Lower part (threaded part)
Polyacetal (POM)
O-ring
Rubber NBR (Perbunan®)
Air filter PU-foam (Polyurethane)
Filtration 10 µm
RoHS
Information
Breather caps GN 556 are used when the ventilation / breathing function is temporarily not required or desired, for instance during transport.
In their sealing position, the two O-rings prevent liquids and gases from leaking.
As shown in the diagram opposite, air throughput is permitted in the ventilation / breathing position.
see also...
| How to order |
| ||||
GN 556-30-G3/8 |
RoHS compliant:
-
-
Weight:
-
-
