Plastic, with Connector Cable

GN 239.4 Hinges with Switch

ELESA original design CFSQ. Info

Identification

SL	Bores for contersunk screw, switch left
SR	Bores for contersunk screw, switch right

Type

AK	Cable at the top
CK	Cable from the back

Show filter

l₁	l₂	h₁	h₂	h₃	h₄	l₃	l₄	l₅	l₆ Cable length in meter		m₁	m₂

70	53	16	8	16	14,5	110	51,5	22,5	2	5	45	34

Filter combination produces no result.

Specification

Plastic (Polyamide PA-HP)

Glass fiber reinforced
Black, matte finish
Temperature resistant up to 80 °C

Pin
Stainless steel AISI 303

Plastic Characteristics

IP Protection Classes

Stainless Steel Characteristics

Overview to appropriate standards of the assembly sets GN 968

Operating instruction GN 239.4

Overview to appropriate standards of the assembly sets GN 965

List of Hinge Types

RoHS

On request

Hinges with operation angle > 0°

Information

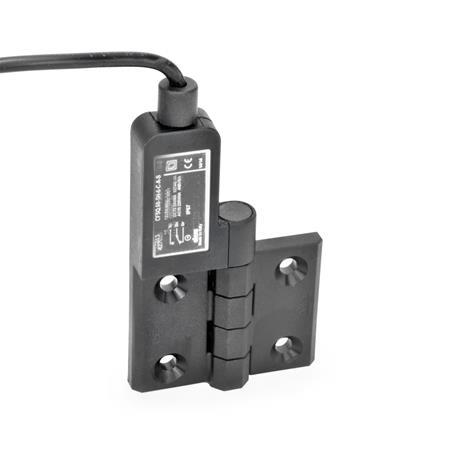

Hinges GN 239.4 with integrated two-way switch are suitable for detecting the status of doors, covers and guards on machines and equipment. Opening the door will activate the switching contact, allowing changes in the door status to be detected electrically depending on the wiring of the contacts (NC or NO).

The hinges with their integrated two-way switch are a compact, tamper-proof and easy to install unit, featuring an ultrasound-welded enclosure.

Operating instructions containing other important technical information are included with every hinge.
