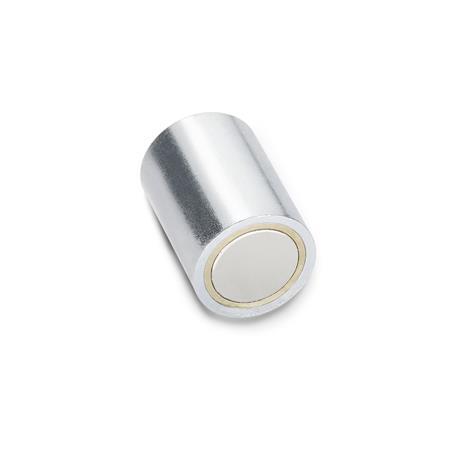

Rod-Shaped, with Internal Thread
GN 52.2 Retaining Magnets
| d1 ±0,1 | d2 | h ±0,2 | t | Nominal adhesive forces in N AN | ND |
|---|---|---|---|---|---|
| 6 | M 3 | 20 | 5 | 2 | 6 |
| 8 | M 3 | 20 | 5 | 4 | 12 |
| 10 | M 4 | 20 | 7 | 8,5 | 24 |
| 13 | M 4 | 20 | 7 | 12 | 60 |
| 16 | M 4 | 20 | 5 | 20 | 90 |
| 20 | M 6 | 25 | 7 | 40 | 135 |
| 25 | M 6 | 35 | 9 | 60 | 190 |
| 32 | M 8 | 40 | 9 | 160 | 340 |
| 40 | M 8 | 50 | 12 | 240 | 700 |
| 50 | M 10 | 60 | 12 | 400 | 1000 |
| 63 | M 12 | 65 | 14 | 660 | 1700 |
Filter combination produces no result.
Specification
Housing
Steel, zinc plated
Materials of the magnet:
RoHS
Steel, zinc plated
Materials of the magnet:
- AlNiCoAN
Aluminum, nickel, cobalt
Temperature resistant up to 450 °C
- NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
RoHS
Accessory
Holding Disks GN 70Adhesive Disks GN 70.1
Rubber Caps GN 70.2
Information
Retaining magnets GN 52.2 are combined with a steel housing and insulation of brass/aluminum or plastic into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
see also...
| How to order |
| ||||
GN 52.2-ND-16 |
