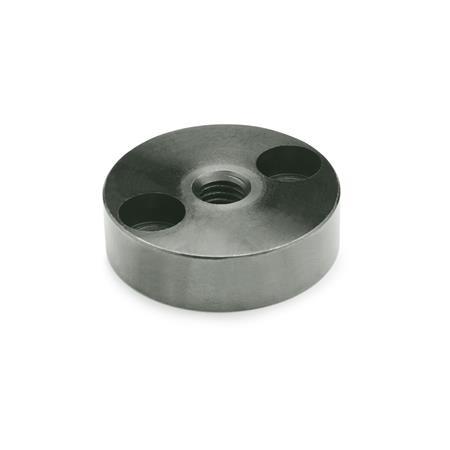

GN 349 Mounts for Leveling Feet
| d1 | d2 | d3 | d4 | h | k | t | ||
|---|---|---|---|---|---|---|---|---|
| 36 | M 8 | M 10 | M 12 | 5,3 | 10 | 10 | 24 | 5,3 |
Filter combination produces no result.
Specification
Steel
RoHS
- Weldable
- Blackened
RoHS
Information
Mounts GN 349 are used on leveling feet particularly in such cases where a machine shrouding is made of very thin sheet metal.
| How to order |
| ||||
GN 349-36-M10 |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
