up to 100 °C

GN 743.4 Stainless Steel Oil Sight Glasses

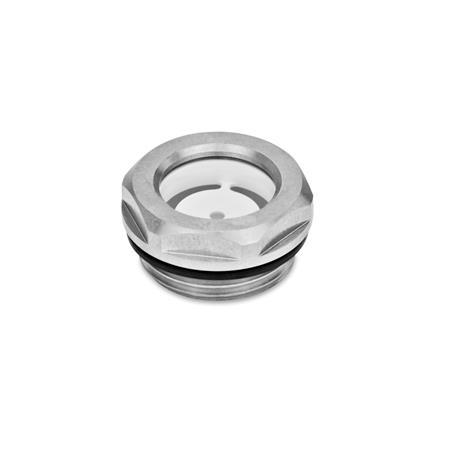

Stainless Steel Oil Sight Glasses GN 743.4 thumbnail

Stainless Steel Oil Sight Glasses GN 743.4 sketch

Type

A	With reflector
B	Without reflector

Show filter

d₁	d₂			d₃	l₁	l₂	s

11	G 3/8	M 16 x 1,5	-	22	8	7,5	20
14	G 1/2	M 20 x 1,5	-	26	8,5	7,5	23
18	G 3/4	M 26 x 1,5	M 27 x 1,5	32	9	8	30
24	G 1	M 33 x 1,5	-	40	11	8,5	36
32	G 1 1/4	M 42 x 1,5	M 42 x 2	50	12	9	46

Filter combination produces no result.

Specification

Body
Stainless steel AISI 303

Sight glass

Float glass
Temperature resistant up to 100 °C'''

Seals
Rubber NBR (Perbunan^®)

Reflector (Type A)
Technopolymer (Polysulfon)

Circlip (Type B)
Stainless steel AISI 301

Stainless Steel Characteristics

Plastic Characteristics

Elastomer Characteristics

RoHS

Accessory

Mounting Nuts GN 7430

On request

EPDM seal

Information

Stainless steel oil sight glasses GN 743.4 offer genuine glass of high stability and scratch proof. The seal is achieved with an O-ring on the periphery and not on the face edge of the glass. Leak tightness is therefore not affected by axial pressures.

The outside diameter of these oil sight glasses with recessed hexagon is chosen to match mounting holes for tube connections according to DIN 3852.

The seal is housed in a groove and it can therefore not be lost. In addition, this groove prevents the seal from being extruded when the sight glass is tightened.

Stainless steel oil sight glasses GN 743.4 can also be used on pressurised tanks. Tests regarding maximum pressure are available.

Assembly instruction:
For mounting on walls of less than 4 mm thickness please use a mounting nuts GN 7430.
