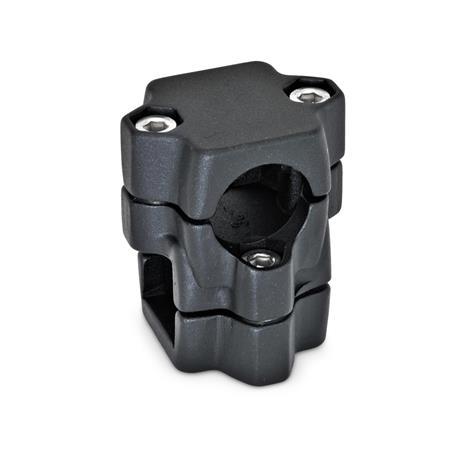

Aluminum, Multi Part Assembly

GN 134 Two-Way Connector Clamps

Two Way Connector Clamps GN 134 thumbnail

Identification no.

2	With 4 stainless steel socket cap screws DIN 912

Show filter

d₁ - d₂ Bore - Bore	d₁ - s₂ Bore - Square	s₁ - s₂ Square - Square	k Clamping length	l₁	l₂	m	z Screw locations	Accessory recom. hand lever GN 911 for z l₃

B20-B20	B20-V20	V20-V20	50	79,5	68	33,5	M8-30	63 \| 78
B25-B25	B25-V25	V25-V25	50	79,5	68	33,5	M8-30	63 \| 78
B30-B30	B30-V30	V30-V30	50	79,5	68	33,5	M8-30	63 \| 78
B30-B30	B30-V30	V30-V30	60	109	79	50	M8-50	63 \| 78
B32-B32	-	-	60	109	79	50	M8-50	63 \| 78
B35-B35	B35-V35	V35-V35	60	109	79	50	M8-50	63 \| 78
B40-B40	B40-V40	V40-V40	60	109	79	50	M8-50	63 \| 78
B40-B40	B40-V40	V40-V40	76	125	98	55	M10-50	78 \| 92
B42-B42	-	-	76	125	98	55	M10-50	78 \| 92
B45-B45	B45-V45	V45-V45	76	125	98	55	M10-50	78 \| 92
B48-B48	-	-	76	125	98	55	M10-50	78 \| 92
B50-B50	B50-V50	V50-V50	76	125	98	55	M10-50	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

The clamping bores of two-way connector clamps GN 134 are not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462 .

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
