GN 707.5 Split Shaft Collars

ELESA original design ANPS Info

Show filter

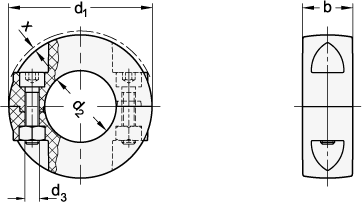

d₁	d₂ recommended shaft tolerance h11			b	d₃	x ≈	max. recommended tightening torque in Nm

35	B 12	B 14	B 16	13	M 4	1	2
40	B 18	B 20	-	14	M 4	0,75	2
50	B 22	B 25	B 30	14	M 5	2,4	3
65	B 35	B 40	-	14	M 5	0,2	3

Filter combination produces no result.

Specification

Plastic
Technopolymer (Polyamide PA)

Glass fiber reinforced
Temperature resistant up to 80 °C
Black-gray, matte finishSG

Socket cap screw DIN 912
Stainless steel AISI 316L

Hexagon nut DIN 934
Stainless steel AISI 316L

ISO Fundamental Tolerances

Stainless Steel Characteristics

Highlights / Product information shaft collars

RoHS

Information

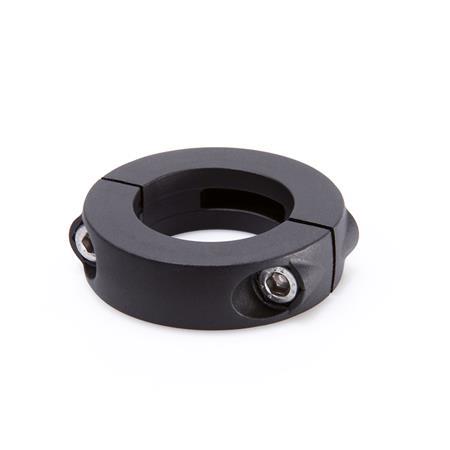

Split shaft collars GN 707.5 can be assembled radially, e.g., on cables, shafts and axles as an end stop. The clamping is done by reducing the slot height, wherein the surface is properly protected by the plastic.

Combined with the stainless steel screws and nuts, the extremely lightweight plastic elements are particularly suitable for use in corrosive environments.
