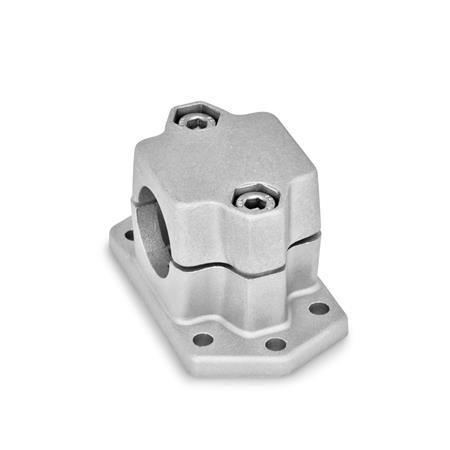

GN 147.3 Flanged Connector Clamps

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	s Square	d₂	k Clamping length	l₁	l₂	m	t	x₁	x₂	y₁	y₂	y₃	z Screw locations	Accessory Recom. hand lever GN 911 for z l₃

B 20	V 20	6,5	50	53	68	30	7	55	40	97,5	60	82,5	M8-35	63 \| 78
B 25	V 25	6,5	50	53	68	30	7	55	40	97,5	60	82,5	M8-35	63 \| 78
B 30	V 30	6,5	50	53	68	30	7	55	40	97,5	60	82,5	M8-35	63 \| 78

Filter combination produces no result.

Specification

Aluminum

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

RoHS

Adjustable Hand Levers GN 911

The clamping bore of flanged connector clamps GN 147.3 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.

RoHS compliant: Info
