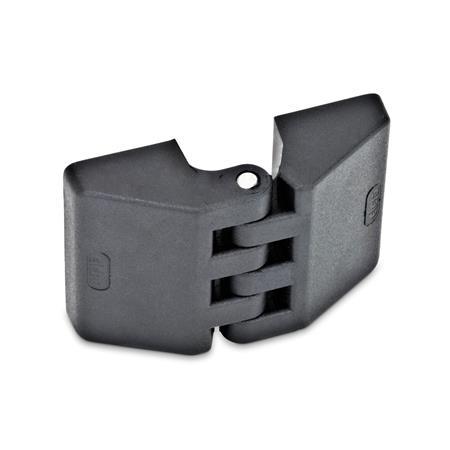

GN 155 Hinges
ELESA original design CFE.

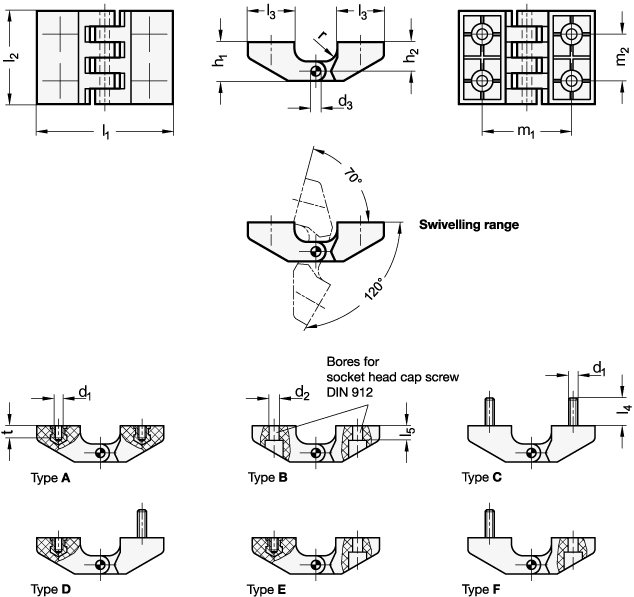

Form
| A | 2x2 threaded blind bores |
| B | 2x2 bores for socket cap screws |
| C | 2x2 threaded studs |
| D | 2x threaded blind bores / 2x threaded studs |
| E | 2x threaded blind bores / 2x bores for socket cap screws |
| F | 2x threaded studs / 2x bores for socket cap screws |
| l1 Nominal dimension | Actual dimension | l2 Nominal dimension | Actual dimension | d1 | d2 | d3 | h1 | h2 | l3 | l4 | l5 | m1 ±0,3 | m2 ±0,3 | r | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 45,5 | 30 | 30,5 | M 3 | 3,3 | 2,5 | 12,5 | 9,5 | 15 | 13 | 4 | 30 | 15 | 5 | 4 |
| 58 | 59 | 40 | 40,5 | M 4 | 4,3 | 4 | 16,5 | 12,5 | 20 | 18 | 6 | 40,4 | 20 | 6 | 5,5 |
| 70 | 70 | 48 | 48,5 | M 5 | 5,5 | 5 | 20 | 15 | 24 | 17 | 8 | 46 | 24 | 7 | 6,5 |
| 97 | 97 | 66 | 66 | M 6 | 6,5 | 6 | 27,5 | 21 | 33 | 16 | 10 | 63,7 | 33 | 8 | 9 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA)
Pin
Stainless steel AISI 303
Threaded bushings
Brass, nickel plated
Threaded studs
Brass, nickel plated
RoHS
- Black, matte finish
- Temperature resistant up to 80 °C
Pin
Stainless steel AISI 303
Threaded bushings
Brass, nickel plated
Threaded studs
Brass, nickel plated
RoHS
