Aluminum

GN 478 Attachment Mounting Clamps

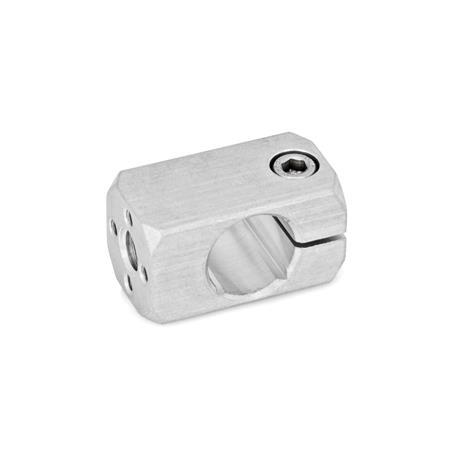

Attachment Mounting Clamps GN 478 thumbnail

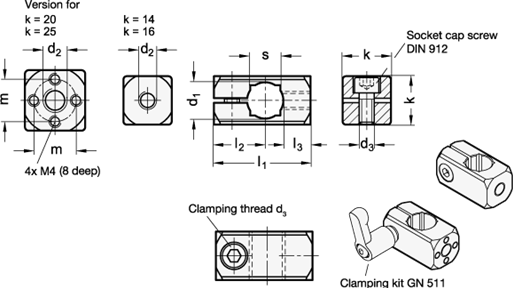

Attachment Mounting Clamps GN 478 sketch

Show filter

d₁ Bore for shaft tol. h11	d₂			d₃ Clamping thread	k	l₁	l₂	l₃	m	s Square	Clamping lever for d₃

B 8	M 5	-	-	M 4	14	25	13,5	7,5	-	-	GN 511-M4-14
B 10	M 5	M 6	M 8	M 5	16	30	17	8	-	8	GN 511-M5-16
B 12	M 5	M 6	M 8	M 5	16	32	17	9	-	10	GN 511-M5-16
B 15	M 6	M 8	-	M 6	20	40	20,5	12	14	12	GN 511-M6-20
B 16	M 6	M 8	-	M 6	20	40	20,5	11,5	14	-	GN 511-M6-20
B 20	M 8	M 10	-	M 6	25	45	21,5	12	17	16	GN 511-M6-25

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Socket cap screws DIN 912
Stainless steel AISI 304

ISO Fundamental Tolerances

Stainless Steel Characteristics

RoHS

Accessory

Clamping Kits GN 511

Information

Attachment mounting clamps GN 478 are primarily designed for mounting sensor holders GN 479 and retaining plates GN 479.1. They are fitted with a central thread and, with d₁ = B15 bore and higher, an additional bore template 4 x M4.

In the standard version the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 511 (article code see table of dimensions).
