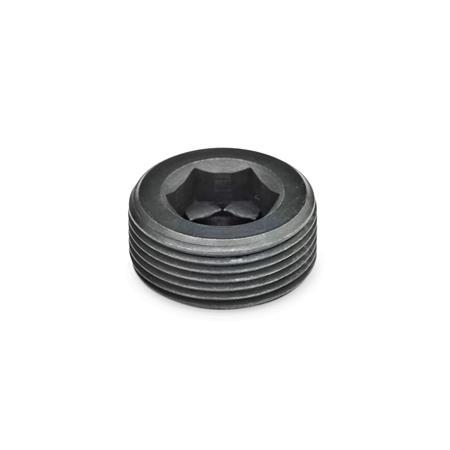

GN 252 Blanking Plugs, Steel, blackened
Type
| A | Without thread coating |
| PRB | With thread coating (polyamide allround coating) |
| d | h | A/F |
|---|---|---|
| M 12 x 1,5 | 10 | 6 |
| M 16 x 1,5 | 10 | 8 |
| M 20 x 1,5 | 12 | 10 |
| M 24 x 1,5 | 12 | 14 |
| M 27 x 1,5 | 12 | 14 |
| M 30 x 1,5 | 12 | 17 |
| M 33 x 1,5 | 12 | 17 |
Filter combination produces no result.
Specification
Information
The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
see also...
| How to order |
| ||||
GN 252-M24x1,5-A |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
