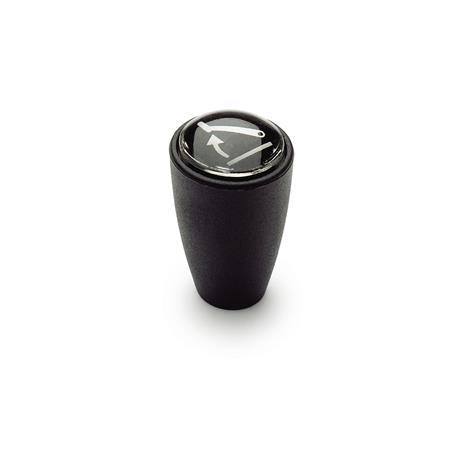

GN 518 Tapered Knobs, plastic, press on type
ELESA original design IH.N
| d1 | d2 Bore | d3 | d4 Symbol-Ø | h | t |
|---|---|---|---|---|---|
| 27 | B 8 | 15 | 20 | 42 | 25 |
| 32 | B 10 | 18 | 25 | 49 | 25 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Transparent sight glass
with magnifying effect
RoHS
Technopolymer (Polyamide PA)
- Temperature resistant up to 90 °C
- Black, shiny finish
Transparent sight glass
with magnifying effect
RoHS
Accessory
Positioning and control symbols GN 517.1Information
The tapered knobs GN 518 do not require a thread at the shaft. During mounting, easy blows with a soft hammer are sufficient to drive the knob into place, the shaft end should be slightly rounded or chamfered (30°). The knobs sit absolute vibration-tight.
The transparent sight glass allows symbols to be placed underneath.
Once the knob is mounted on the shaft, the symbol is placed into the recess of the separately supplied sight glass and driven home with a soft hammer.
The symbol is fully protected from dirt and liquid by the tight connection between the sight glass and the knob.
Positioning and control symbols are to be ordered separately.
| How to order |
| ||||
GN 518-32-B10 |
