Aluminum, Resistant up to 180 °C, Black Anodized

GN 738.1 Magnetic Plugs

Show filter

d₁	d₂				d₃	e ≈	l₁	l₂	l₃	s

19	G 1/4	M 14 x 1,5	-	-	6	17,3	8	23	30,5	15
22	G 3/8	M 16 x 1,5	-	-	6	20,8	8	23	30,5	18
26	G 1/2	M 20 x 1,5	-	-	6	24,3	8,5	23,5	31	21
32	G 3/4	M 26 x 1,5	M 27 x 1,5	-	6	31,3	9	24	32	27
40	G 1	M 33 x 1,5	-	-	6	37	11	26	34,5	32
50	G 1 1/4	M 40 x 1,5	M 42 x 1,5	M 42 x 2	6	47,3	12	27	37	41
60	G 1 1/2	-	-	-	6	57,7	13	28	37	50

Filter combination produces no result.

Specification

Aluminum
Black anodizedES

Magnet
Alloy: AINiCo

Seal
Fluorine caoutchouc (FPM / FKM)

Brown
Temperature resistant up to 180 °C

Magnet Characteristics

Elastomer Characteristics

RoHS

Information

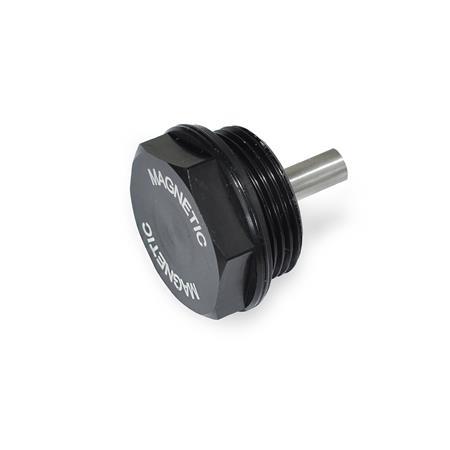

Magnetic plugs GN 738.1 attract iron particles which might be suspended in the liquid.

To avoid breakage or de-magnetising, round rod magnets are fitted with a plastic distance and protection tube. This latter tube has to be removed prior to installing the plug.

The sealing ring is retained in a radial undercut in the mating face which prevents it from dropping off and at the same time it cannot extrude under pressure.

How to order
