Plastic, with Cable

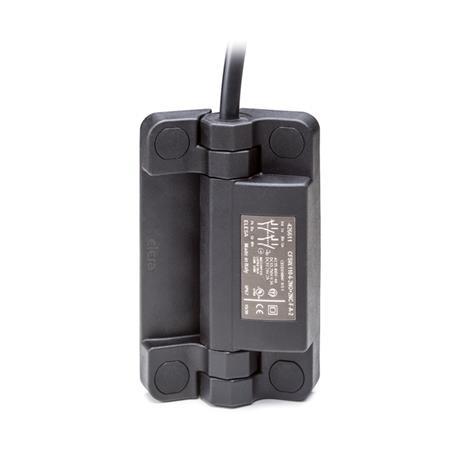

GN 239.6 Hinges with Safety Switch
Type
| AK | Cable at the top |
| BK | Cable at the bottom |
| CK | Cable from the back |
Identification no.
| 1 | Contact block with 2NC / 2NO |
| 2 | Contact block with 3NC / 1NO |
| l1 | l2 | h1 | h2 | h3 | l3 Cable length in meter | m1 | m2 | |
|---|---|---|---|---|---|---|---|---|
| 60 +1 | 110 | 25 | 15 | 12 | 2 | 5 | 42 | 91 |
Specification
Plastic (Polyamide PA-HP)
- Glass fiber reinforced
- Black, matte finish
- Temperature resistant up to 80 °C
Pin and mounting bushings
Plastic (Polyamide PA)
- Glass fiber reinforced
- Black, matte
- Temperature resistant up to 80 °C
Assembly video GN 239.6
Operating Instruction EN 239.6
Mechanical and electrical features
IP Protection Classes
Overview to appropriate standards of the assembly sets GN 965
Overview to appropriate standards of the assembly sets GN 968
List of Hinge Types
Plastic Characteristics
RoHS
On request
Hinges with other contact block
Housing in gray, RAL 7040
Information
Hinges GN 239.6 with integrated safety switches have been designed for monitoring doors and covers of machines and plants. Opening the door will activate the switch contacts which, in turn, will then interrupt a protective circuit via a break contact (NC) and at the same time signal the door opening by closing a make contact element (NO).
The contact blocks are fitted with force-opening slow-action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable (see contact travel diagram).
Together with the integrated contact blocks, the hinges are a compact, tamper-proof and easy to mount unit.
Operating instructions showing more important technical information are included with every hinge.
| How to order |
| ||||||||||
GN 239.6-60-110-1-AK-2 |
-
-
