Accessory for Profile Systems

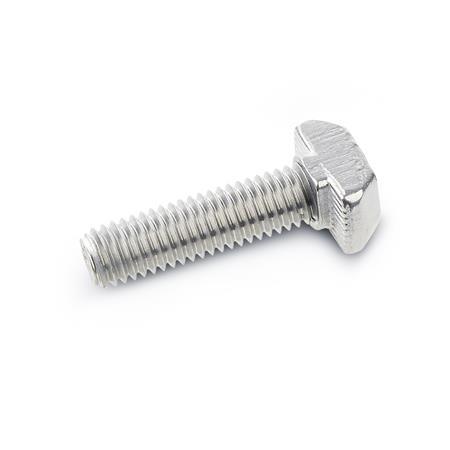

GN 505.5 Stainless Steel T-Slot Bolts

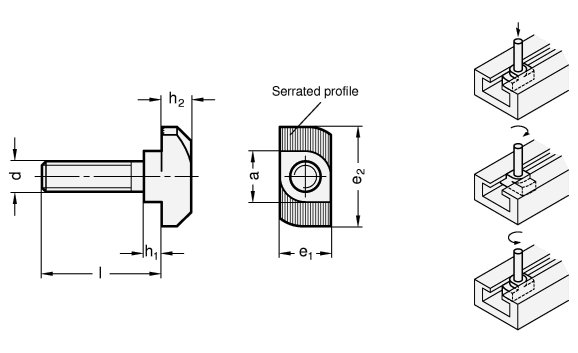

| a -0,1/-0,6 | d | Length l | h1 | h2 | e1 | e2 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 8 | M 6 | 20 | 25 | 30 | 40 | 60 | 1,6 -0,6 | 5 ±1 | 7,9 -0,5 | 16 +0,5/-1,0 |
| 10 | M 6 | 20 | 25 | 30 | 40 | 60 | 3,5 -1 | 6,5 -1,5 | 10 0/-2,5 | 19 +0,5/-2,0 |
| 10 | M 8 | 20 | 25 | - | - | - | 3,5 -1 | 6,5 -1,5 | 10 0/-2,5 | 19 +0,5/-2,0 |
Filter combination produces no result.
Specification
Information
Stainless steel T-slot bolts GN 505.5 can be inserted vertically into the slot. During tightening, the bolt is forced into the crosswise position and thus anchored in the slot. Conversely, the bolt is turned back during loosening and can then be removed.
The clamping face of the bolt is serrated to ensure that the eloxal coating is broken up to establish a good electrical contact.
T-slot bolts are made from a single piece or from two connected pieces.
| How to order |
| ||||||||
GN 505.5-10-M8-25-3,5 |
RoHS compliant:
-
-
Weight:
-
-
