GN 192.15 T-Angle Linear Actuator Connectors
Identification no.
| 4 | With 2 stainless steel cap nuts DIN 917 |
Type
| A | Without seals |
| B | With seals |
| d1 Bore with sleeve bearing | d2 Bore | b | d3 Mounting screws on the drive key | k1 Clamping length | k2 Clamping length | l1 | l2 | m | z1 Screw location | z2 Screw location | Accessory Recom. hand lever GN 911.3 for z1 l3 | for z2 l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| G 30 | B 30 | 22 | M 4 | 37 | 42 | 96 | 35 | 60 | M 8 | M 8 | 63 | 78 | 63 | 78 |
| G 50 | B 50 | 30 | M 6 | 65 | 75 | 151,5 | 48,5 | 103 | M 10 | M 10 | 78 | 92 | 78 | 92 |
Filter combination produces no result.
Specification
Stainless steel AISI CF-8
Matte shot-blasted
Sleeve bearing
Plastic (PTFE)
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / Washers
Stainless steel
Seals
RoHS
Matte shot-blasted
Sleeve bearing
Plastic (PTFE)
Carriage bolt DIN 603
Stainless steel
Cap nuts DIN 917 / Washers
Stainless steel
Seals
- Sealing disks
Plastic (Polyacetal POM) - Spacer ring
Silicon, 40 ... 60 Shore A
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information

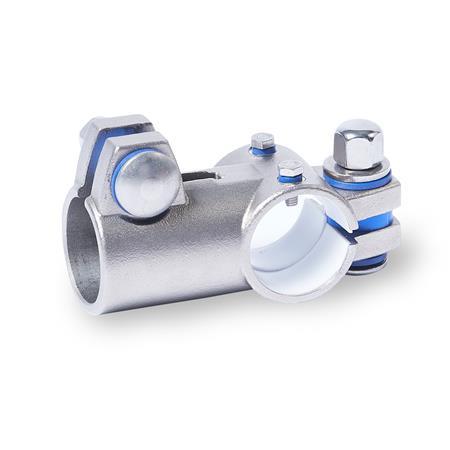

T-angle linear actuator connectors GN 192.15 are based on T-angle connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.
With the screw locations z2, the play of the guide bore d1 can be adjusted or the linear actuator connectors can be clamped after adjustment. Type B is equipped with seals at the screw locations.
For quick clamping without tools, the cap nuts can be replaced by the adjustable levers GN 911.3 listed in the table as accessories.
| How to order |
| ||||||||
GN 192.15-G50-B50-A-4 |
