with 180° Limit Stop, without Locking Function

GN 721 Cam Action Indexing Plungers, Guide steel, blackened

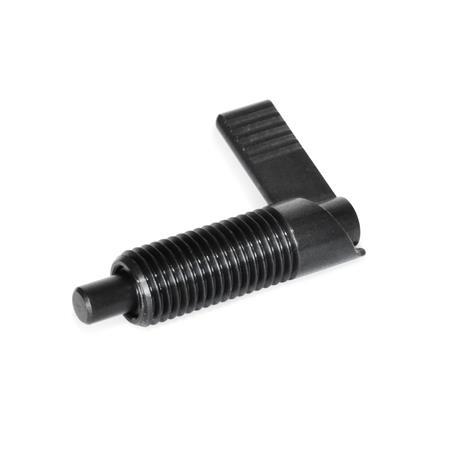

Cam Action Indexing Plungers Guide steel blackened GN 721 thumbnail

Cam Action Indexing Plungers Guide steel blackened GN 721 sketch

Type

RA	Right-hand lock
RB	Right-hand lock, with plastic cap
RAK	Right-hand lock, with lock nut
RBK	Right-hand lock, with plastic cap, with lock nut
LA	Left-hand lock
LB	Left-hand lock, with plastic cap
LAK	Left-hand lock, with lock nut
LBK	Left-hand lock, with plastic cap, with lock nut

Show filter

d₁ Pin -0,02/-0,04 Bore H7	d₂	d₃	l₁	l₂	l₃ +1,5	l₄	l₅	Spring load in N ≈ initial	end

5*	M 10 x 1	10	37,5	6	19	21	-	7	20
6	M 12 x 1,5	12	47	8	26	26	32	8	18
8	M 16 x 1,5	16	56	10	30	32	42	11	29
10	M 20 x 1,5	20	69	12	37	37	52	21	57

Filter combination produces no result.

* This size is only available in types LA, LAK, RA and RAK.

Specification

Steel

Blackened
Plunger pin nitrided

Pressure spring
Stainless steel AISI 301

Cap
Plastic (Polyamide PA)
Black, matte finish

Load Rating Information

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

For cam action indexing plungers GN 721 the indexing plunger pin is withdrawn by turning the lock by 180°.

When the cam action indexing plungers are positioned symmetrically, the left or right handed types allow for a practical, i.e. equal, direction setting of the lock.
