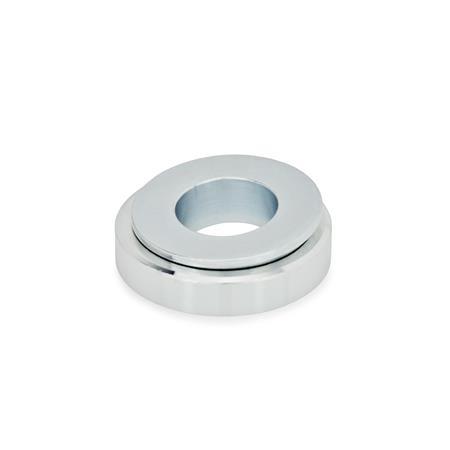

GN 350.3 Spherical Leveling Washers, Steel, zinc plated

Spherical Leveling Washers Steel zinc plated GN 350.3 thumbnail

Spherical Leveling Washers Steel zinc plated GN 350.3 sketch

Show filter

d₁	d₂	d₃ Minimum dimension	h ±0,5	For screw up to max.	Static load in kN

25 ±0,2	8,5	15	8	M 8	40
32 ±0,3	13	20	10	M 10	65
45 +0,3/-0,5	20	30	12,5	M 16	120
58 +0,3/-1	29	38	16	M 24	210
70 +0,3/-1	36	48	20	M 30	330
80 +0,3/-1,2	44	61	20	M 36	495
105 +0,3/-1,6	58	78	25	M 48	920

Filter combination produces no result.

Specification

SteelST, 1.7225 (42 CrMo 4 V)
Zinc plated, blue passivated

RoHS

Information

Spherical leveling washers GN 350.3 have been designed to match the leveling sets GN 350, GN 350.1, GN 350.2 and GN 350.5.

The two spherical washers are used together „undetachably“.

The load bearing capacity of these spherical washers is relatively high. This is not only due to the material quality but also to the matched sphere of the concave „pan“.

Furthermore it is recommended using high-strength washers for bridging d₂.
