Adjustable

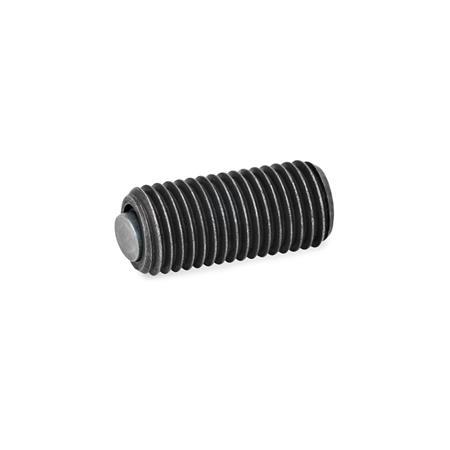

GN 709.8 Clamping Pads
Type
| B | Ball steel, smooth contact face |
| R | Ball steel, serrated contact face |
| K | Ball plastic, smooth contact face |
| d1 | l1 ±0,13 | d2 | d3 Ball-Ø | A/F | Statiic load max. in kN Type B | Type R | Type K | ||
|---|---|---|---|---|---|---|---|---|---|
| M 12 | 25 | 35 | 50 | 6 | 7 | 6 | 12 | 6 | 2 |
| M 16 | 25 | 35 | 50 | 8,5 | 10 | 8 | 20 | 9 | 4 |
Filter combination produces no result.
Specification
Steel
Ball
O-ring
Rubber NBR (Perbunan®)
RoHS
- Tempered
- Property class 10.9
Ball
- Steel hardened (54+2 HRC)
- Plastic (Polyacetal POM)
O-ring
Rubber NBR (Perbunan®)
RoHS
Information
Clampimg pads GN 709.8 are also used in jig and fixture construction, for example for clamping workpieces, as movable bearing surface or as stop. The swivel-mounted ball compensates uneven and non-parallel contact surfaces by as much as 10°. It is also secured against further twisting.
The O-ring holds the ball in position and prevents dirt from penetrating, resulting in a long service life and constant mobility.
| How to order |
| ||||||
GN 709.8-M12-25-B |
RoHS compliant:
-
-
Weight:
-
-
