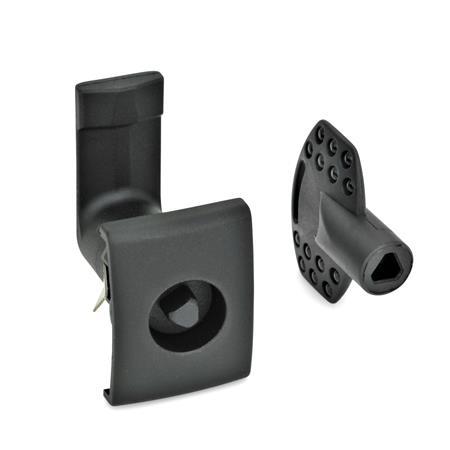

GN 115.5 Latches

ELESA original design CQT.FM Info

Type

DK	Operation with triangular spindle (DK6.5)
VDE	Operation with double bit

Identification no.

1	Lock housing with round stop
2	Lock housing with stop, rectangular with handle
3	Lock housing with stop, round with handle

Show filter

Latch distance A

18	20	22	25	30

Filter combination produces no result.

Specification

Plastic (Polyamide PA)
Glass fiber reinforced

Lock housing
Stop round (Identification no. 1)

Black, RAL 9005, textured finishSW
Temperature resistant up to 130 °C
Self extinguishing
Chrome platedCR
Temperature resistant up to 80 °C

Lock housing
Stop rectangular (Identification no. 2)

Black, RAL 9005, textured finishSW
Temperature resistant up to 130 °C
Self extinguishing

Lock housing
Stop round with handle (Identification no. 3)

Black, RAL 9005, textured finishSW
Temperature resistant up to 130 °C

Other parts
Stainless steel

Protection class IP 65

IP Protection classes

Plastic Characteristics

RoHS

Accessory

Keys GN 119.2

Information

Latches GN 115.5 with the black finish (SW) are made entirely of a self-extinguishing plastic material, classed as self-extinguishing under UL 94 V-0.

The classification under UL 94 V-0 (Underwriters Laboratories) describes the fire behaviour of plastic. In the test, a plastic test specimen with a certain shape and with certain dimensions is placed vertically and set on fire. For classification V-0, the flame must go out within 10 seconds without generating burning drops.

Key for triangular spindle and key with double bit made of plastic are included parts of the order.
