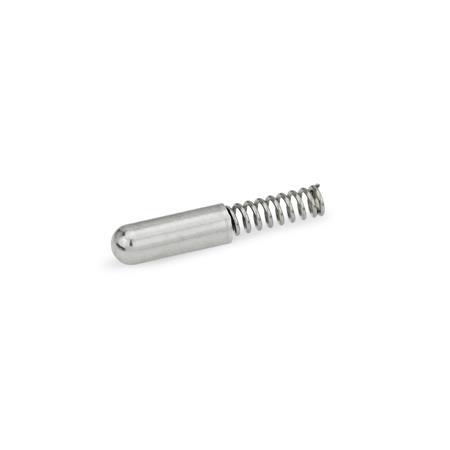

GN 610 Spring Loaded Shells
Type
| H | Semi-spherical, steel |
| HN | Semi-spherical, stainless steel |
| HBN | Semi-spherical with collar, stainless steel |
| K | Pointed nose |
| Type | d1 ±0,05 | l0 | d2 | h | l1 | l2 | s | F1 Spring load in N ≈ | F2 Spring load in N ≈ |
|---|---|---|---|---|---|---|---|---|---|
| H | 2,2 | 16 | - | 7,8 | 12 | 10,5 | - | 2,2 | 3 |
| H | 2,6 | 8 | - | 3,8 | 6,5 | 5,2 | - | 1,1 | 2 |
| H | 3 | 12 | - | 6 | 9 | 8,7 | - | 6,2 | 6,8 |
| H | 3 | 16 | - | 8,5 | 13 | 10,7 | - | 4,8 | 8,4 |
| H | 3,4 | 12 | - | 6 | 9 | 7,8 | - | 5 | 7 |
| H | 3,4 | 15 | - | 7,3 | 12 | 8,2 | - | 5,9 | 13,3 |
| H | 4 | 14 | - | 8 | 12 | 9 | - | 5 | 12,3 |
| H | 5 | 16 | - | 8 | 13 | 10,4 | - | 8 | 15 |
Filter combination produces no result.
| Type | d1 ±0,05 | l0 | d2 | h | l1 | l2 | s | F1 Spring load in N ≈ | F2 Spring load in N ≈ |
|---|---|---|---|---|---|---|---|---|---|
| HN | 3 | 16 | - | 8 | 13 | 10,6 | - | 4,8 | 8,6 |
| HN | 3,6 | 18 | - | 9 | 15 | 11,5 | - | 6,7 | 14,5 |
| HN | 4 | 16 | - | 7,5 | 13 | 11,4 | - | 8 | 12,3 |
| HN | 4 | 16 | - | 7,5 | 13 | 11,4 | - | 8 | 12,3 |
Filter combination produces no result.
| Type | d1 ±0,05 | l0 | d2 | h | l1 | l2 | s | F1 Spring load in N ≈ | F2 Spring load in N ≈ |
|---|---|---|---|---|---|---|---|---|---|
| HBN | 3 | 13 | 4,1 | 7 | 10 | 8,9 | 0,1 | 5,3 | 7,2 |
Filter combination produces no result.
| Type | d1 ±0,05 | l0 | d2 | h | l1 | l2 | s | F1 Spring load in N ≈ | F2 Spring load in N ≈ |
|---|---|---|---|---|---|---|---|---|---|
| K | 2,2 | 16 | - | 7,8 | 12 | 10,5 | - | 2,2 | 3 |
| K | 3 | 11 | - | 5 | 9 | 6,7 | - | 1,6 | 3,4 |
| K | 3 | 16 | - | 8,5 | 13 | 10,7 | - | 4,8 | 8,4 |
Filter combination produces no result.
Specification
Housing
Pressure spring
Stainless steel AISI 301
RoHS
- Type H / K
Steel, nickel plated
- Type HN / HBN
Stainless steel AISI 305
Pressure spring
Stainless steel AISI 301
RoHS
Information
Spring loaded shells GN 610 are used for indexing and locking. A special feature is their large spring travel with a compact size.
A simple hole is sufficient for installation. Pre-tensioning and securing of the spring loaded shells must be ensured by the opposing stop piece.
Type HBN has a collar to prevent the spring-loaded shell from springing out the front. A simple stepped hole is sufficient for installation. The part is secured from the back side, such as with a plate or a threaded stud.
| How to order |
| ||||||
GN 610-3,4-15-H |
