Consisting of Three Parts / Steel

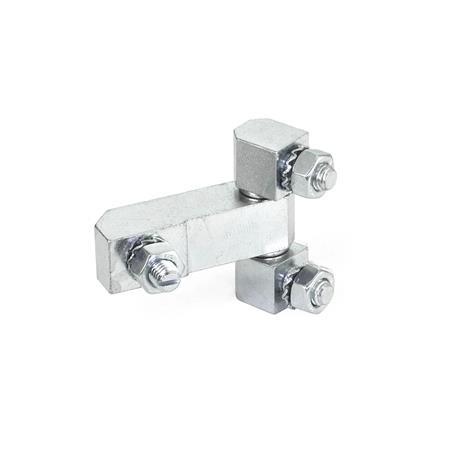

GN 129.2 Hinges
Type
| C | Mounting from the back |
| l1 | l2 | b | d1 | d2 Pin | h1 | h2 | l3 | l4 max. | l5 | l6 max. | l7 | m1 | m2 | s | t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 40 | 13 | M 6 | 6 | 13 | 13,5 | 18 | 6 | 11 | 5 | 10 | 30 | 28,2 | 12 | 9 |
| 50 | 51 | 18 | M 8 | 8 | 18 | 18 | 26 | 8 | 14 | 8 | 14 | 29 | 35 | 16 | 11 |
| 53 | 40 | 13 | M 6 | 6 | 13 | 13,5 | 26 | 6 | 11 | 5 | 10 | 38 | 28,2 | 12 | 9 |
| 61 | 51 | 18 | M 8 | 8 | 18 | 18 | 26 | 8 | 14 | 8 | 14 | 40 | 35 | 16 | 11 |
Filter combination produces no result.
Specification
Hinge
SteelST
Zinc plated, blue passivated
Pin
Brass, nickel plated
Washer
Brass, nickel plated
Hexagon nut ISO 4032
Steel zinc plated, blue passivated
Serrated washer DIN 6797
for securing screws
Zinc plated, blue passivated
RoHS
SteelST
Zinc plated, blue passivated
Pin
Brass, nickel plated
Washer
Brass, nickel plated
Hexagon nut ISO 4032
Steel zinc plated, blue passivated
Serrated washer DIN 6797
for securing screws
Zinc plated, blue passivated
RoHS
Information
Hinges GN 129.2 are used for doors which are flush with the frame on the outside. Once assembled, they cannot be unhinged.
With the fixing from the inside, they are especially suitable for doors and trap doors which must not be detachable from the outside as an anti-tamper device.
see also...
| How to order |
| ||||||||
GN 129.2-53-40-C-ST |
RoHS compliant:
-
-
Weight:
-
-
