Stainless Steel
GN 281 Swivel Clamp Connector Joints
Identification no.
| 2 | With 2 stainless steel socket cap screws DIN 912 |
| d1 Bore | b Swivel width | d2 | k | l1 | l2 | m1 | m2 | t | x1 | x2 | y | z1 Screw locations | z2 Screw locations | Accessory Recom. hand lever GN 911.3 for z1 l3 | for z2 l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 12 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | - | 45 | 63 |
| B 14 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | - | 45 | 63 |
| B 15 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | - | 45 | 63 |
| B 16 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | - | 45 | 63 |
| B 18 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | 63 | 45 | 63 |
| B 20 | 25 | 5,5 | 31,5 | 72,5 | 34,5 | 24 | 48,5 | 7 | 50 | 38 | 35 | M6-20 | M6-20 | 45 | 63 | 45 | 63 |
Filter combination produces no result.
Specification
Stainless steelNI AISI CF-8
Matt shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Stainless Steel Characteristics
Overview to appropriate standards of the assembly sets GN 968
Overview to appropriate standards of the assembly sets GN 965
RoHS
Matt shot-blasted
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
Stainless Steel Characteristics
Overview to appropriate standards of the assembly sets GN 968
Overview to appropriate standards of the assembly sets GN 965
RoHS
Accessory
Adjustable Hand Levers GN 911.3Information

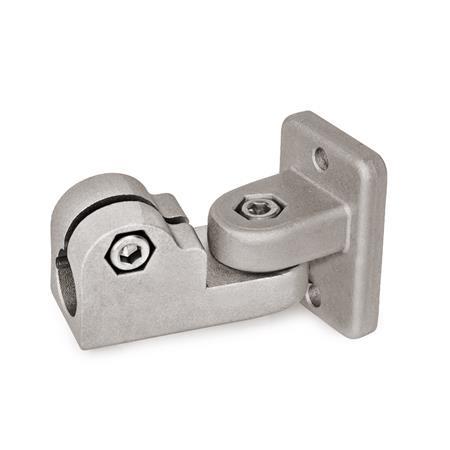

Swivel clamp connector joints GN 281 are an assembly of the swivel clamp connectors GN 271 and GN 275.
The clamping bore is mechanically machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.
At the screw location z1, the socket cap screw reduce the bore cross-section for clamping.
For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911.3 listed in the table as accessories.
| How to order |
| ||||||
GN 281-B16-2-NI |
