with Retaining Magnet
GN 251.6 Setting Bolts

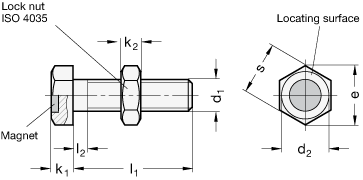

| d1 * | l1 | d2 | e ≈ | k1 -1 | k2 | l2 max. | s | Nominal load in N | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | 12 | 16 | 20 | 25 | 30 | 10 | 11 | 4 | 3,2 | 3 | 10 | 25 |
| M 8 | 16 | 20 | 25 | 30 | 40 | 13 | 14,4 | 5,3 | 4 | 3,7 | 13 | 50 |
| M 10 | 20 | 25 | 30 | 40 | 50 | 17 | 17,8 | 6,4 | 5 | 4,5 | 17 | 75 |
| M 12 | 25 | 30 | 40 | 50 | 60 | 19 | 20 | 7,5 | 6 | 5,2 | 19 | 110 |
| M 16 | 30 | 40 | 50 | 60 | 80 | 24 | 26,8 | 10 | 8 | 6 | 24 | 145 |
Filter combination produces no result.
* Thread: nut mobility
Specification
Screw Steel
Hexagon nut steel
Material of the magnet
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
RoHS
- Property class 5.8
- Zinc plated, blue passivated
Hexagon nut steel
- Property class 04
- Zinc plated, blue passivated
Material of the magnet
NdFeBND
Neodymium, iron, boron
Temperature resistant up to 80 °C
RoHS
Information

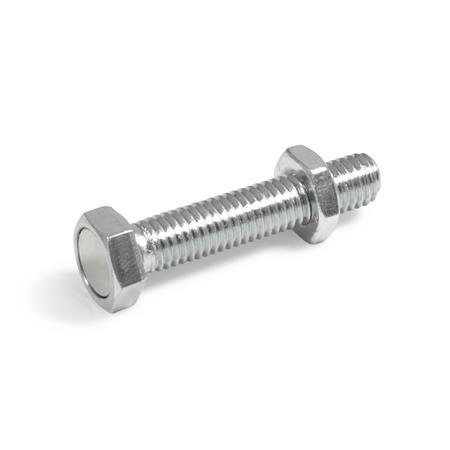

Setting bolts GN 251.6 with retaining magnet are a shielded magnetic system.
Suitable e.g. as workpiece stop, with the magnet holding the workpiece in place.
The locking nut (included) can be used to secure the stop screw after positioning.
see also...
| How to order |
| ||||||
GN 251.6-M6-12-ND |
