GN 473 Base Plate Mounting Clamps,

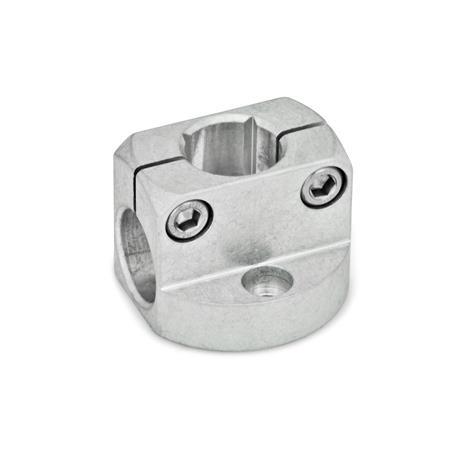

Base Plate Mounting Clamps GN 473 thumbnail

Base Plate Mounting Clamps GN 473 sketch

Show filter

d₁ Bore for shaft tol. h11	b₁	b₂	d₂	d₃ Clamping thread	d₄ For screw	l₁	l₂	l₃	l₄	m	s Square	Clamping kits for d₃

B 8	14	29	31,5	M 4	M 4	20	7	7	3	22	-	GN 511-M4-14
B 10	16	35	38	M 5	M 5	24	8	8	2,5	27	8	GN 511-M5-16
B 12	16	35	38	M 5	M 5	25	8	8	2,5	27	10	GN 511-M5-16
B 15	20	41	45	M 6	M 6	30	10	10	4	32	12	GN 511-M6-20
B 16	20	41	45	M 6	M 6	31	10	10	4	32	-	GN 511-M6-20
B 20	25	44	50	M 6	M 6	35	12,5	12,5	6,5	36	16	GN 511-M6-25

Filter combination produces no result.

Specification

Aluminum

Matte, groundMT
Anodized blackELS

Socket cap screws DIN 912
Stainless steel AISI 304

ISO Fundamental Tolerances

Overview to appropriate standards of the assembly sets GN 968

Stainless Steel Characteristics

Overview to appropriate standards of the assembly sets GN 965

RoHS

Accessory

Clamping Kits GN 511

Information

Base plate mounting clamps GN 473 have a horizontal and a vertical clamping bore. The vertical clamping bore is additionally fitted with a square.

The bore distance m of the base plate mounting clamps GN 473 is matched with the mounting clamps GN 477 and the flanged bolts GN 480 as well as retaining magnets GN 51.6.

In the standard version, the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 511 (article code see table of dimensions).
