Two Locking Distances A
GN 315.1 Snap Locks
| Locking distance A | b max. door thickness | Length l |
|---|---|---|
| 20 | 12 | 28,5 |
| 25 | 17 | 33,5 |
Filter combination produces no result.
Specification
Housing / Housing collar
Zinc die casting
Housing collar
Additionally powder coated
black, matte textured finish
Slide
Plastic (Polyamide PA)
Black
Push button
Plastic (Polyamide PA)
Light gray
Hexagon nut
Steel zinc plated, blue passivated
RoHS
Zinc die casting
- Corrosion-resistant
ZNDG Pass. nano®-coating - Anthracite colored
Housing collar
Additionally powder coated
black, matte textured finish
Slide
Plastic (Polyamide PA)
Black
Push button
Plastic (Polyamide PA)
Light gray
Hexagon nut
Steel zinc plated, blue passivated
RoHS
Accessory
Opening Handles GN 120.1Information

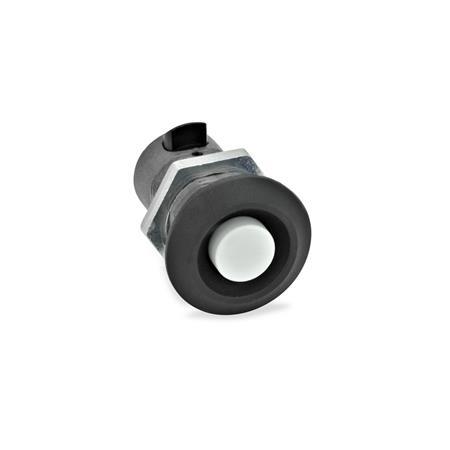

Snap locks GN 315.1 are characterised by a radial, spring-loaded slide causing the locking action.
When closing the door, the locking action sets in automatically. The bevelled slide is first pushed back via an appropriately arranged lug and then moved into the locking position by the pressure spring.
The door is unlocked via the push button.
If no operating element is needed to operate the door or if such element is arranged separately, GN 315.1 snap locks are used.
see also...
| How to order |
| ||
GN 315.1-25 |
