Aluminum, Split Assembly

GN 166 Off-Set Base Plate Connector Clamps

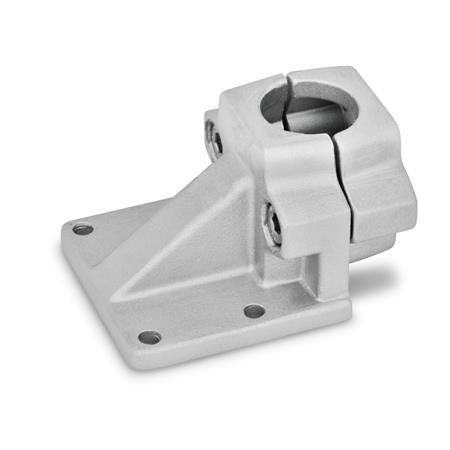

Off Set Base Plate Connector Clamps GN 166 thumbnail

Off Set Base Plate Connector Clamps GN 166 sketch

Identification no.

2	With 2 stainless steel socket cap screws DIN 912

Show filter

d₁ Bore	s Square	d₂	k Clamping length	l₁	l₂	l₃	l₄	t	x₁	x₂	y₁	y₂	y₃	z Screw locations	Accessory rRecom. hand lever GN 911 for z l₅

B 20	V 20	7	58	69	46	96	23	7	75	60	72	35	30	M8-35	63 \| 78
B 25	V 25	7	58	69	46	96	23	7	75	60	72	35	30	M8-35	63 \| 78
B 30	V 30	7	58	69	46	96	23	7	75	60	72	35	30	M8-35	63 \| 78
B 40	V 40	11	91	98	70	145	35	14	115	90	108	50	45	M10-60	78 \| 92
B 42	-	11	91	98	70	145	35	14	115	90	108	50	45	M10-60	78 \| 92
B 45	V 45	11	91	98	70	145	35	14	115	90	108	50	45	M10-60	78 \| 92
B 48	-	11	91	98	70	145	35	14	115	90	108	50	45	M10-60	78 \| 92
B 50	V 50	11	91	98	70	145	35	14	115	90	108	50	45	M10-60	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

Information

The clamping bore of off-set base plate connector clamps GN 166 is not machined and designed for construction tubes GN 990 or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
