with Electrical Switching Function, with Cable
GN 422 Cabinet U-Handles
Type
| T1 | With 1 button |
| T2 | With 2 buttons |
Connection type
| K | Cable |
| l1 ±0,2 | l2 Type T1 | l1 Type T2 | l3 | a | d | h | t | Cable length l4 in meter | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 117 | 158 | 181,5 | 105,5 | 10,2 | 33 | M 6 | 44 | 12 | 2 | 5 |
Filter combination produces no result.
Specification
Zinc die castingZD
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Button
Stainless steel AISI 304
Cable (Outer sheath)
Polyurethan PUR
Black
Light guide
Plastic
Crystal-clear Polycarbonate (PC)
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Button
Stainless steel AISI 304
Cable (Outer sheath)
Polyurethan PUR
Black
Light guide
Plastic
Crystal-clear Polycarbonate (PC)
RoHS
Information

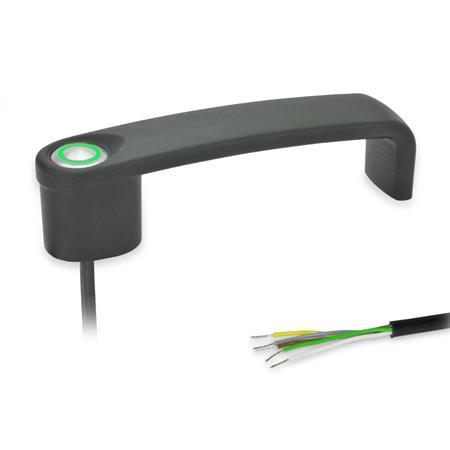

Cabinet U-handles GN 422 come with one or two push buttons. Each button has a changeover switch and integrated LED ring lighting.
When the button is pressed, an electrical control impulse to switch off a machine, for example, can be triggered based on the wiring of the contacts (NC or NO).
Independent whether or not the button is actuated, the integrated LED ring lighting shines either red or green depending on the polarity of connections 1 and 2 of the LED.
The cabinet U-handle is functional and highly compact and can be used for any application due to its universal design.
