with Click-Type Safety Lock, Unlocking with Push-Button

GN 414.1 Stainless Steel Indexing Plungers

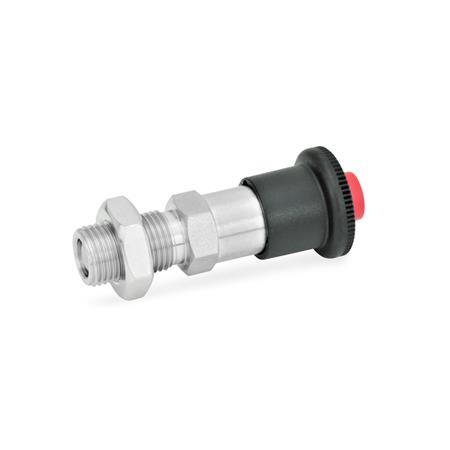

Stainless Steel Indexing Plungers GN 414.1 thumbnail

Stainless Steel Indexing Plungers GN 414.1 sketch

Type

A	Without lock nut
AK	With lock nut

Show filter

d₁ Pin -0,02/-0,04 Bore H7	l₁ min.	d₂	d₃	e	l₂ ≈	l₃	l₄	A/F	Spring load in N ≈ initial	end

6	6	M 12 x 1,5	30	21,9	53,5	22	6	19	6,5	19
6	9	M 12 x 1,5	30	21,9	53,5	22	6	19	6	25
8	8	M 16 x 1,5	30	21,9	59,5	26	8	19	8,5	26
8	12	M 16 x 1,5	30	21,9	59,5	26	8	19	8,5	28
10	12	M 16 x 1,5	30	21,9	59,5	26	8	19	9,5	38

Filter combination produces no result.

Specification

Stainless steelNI

AISI 303
Plunger pin chemically nickel plated

Knob
Plastic (Polyamide PA)

black-gray, RAL 7021, matte
temperature resistant up to 80 °C
not removable

Push-button
Plastic (Polyacetal POM)
Red, RAL 3000, matte

Load Rating Information

ISO Fundamental Tolerances

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

Stainless steel indexing plungers GN 414.1 with click-type safety lock are used when the plunger pin is to be briefly prevented from protruding. When the pin is retracted to its end position, the button engages with a clearly audible click.

The safety lock can be unlocked only by exerting axial pressure on the red safety pushbutton, with the plunger pin then returning to its starting position by spring force.
