for Position Indicators Used on Linear Actuators GN 291, GN 292, GN 293, GN 391

GN 295 Installation Kits

Identification no.

1	For mechanical position indicators GN 953 / GN 954 / GN 955
2	For electronic position indicators GN 9053 / GN 9054

Show filter

d₁ Ø Linear actuator	d₂ H7/f8	b	d₃	h	l₁ Id. no. 1	Id. no. 2	l₂	l₃	for position indicators

18	6	24	10	33	28	-	16	10	GN 955
30	8	35	14	42	35	42	15	10	GN 954 / GN 9054
40	12	47	20	56,5	39	49	16	10	GN 953 / GN 9053
50	12	58	20	61	39	49	17	10	GN 953 / GN 9053
60	14	64	20	-	44	49	18	-	GN 953 / GN 9053

Filter combination produces no result.

Specification

Adaptor shaft
Steel
Blackened

Torque support
Aluminum
Black anodized

ISO Fundamental Tolerances

RoHS

Accessory

Position indicators and handwheels have to be ordered separately.

On request

Linear actuators with analogue position indicator GN 000.8

Information

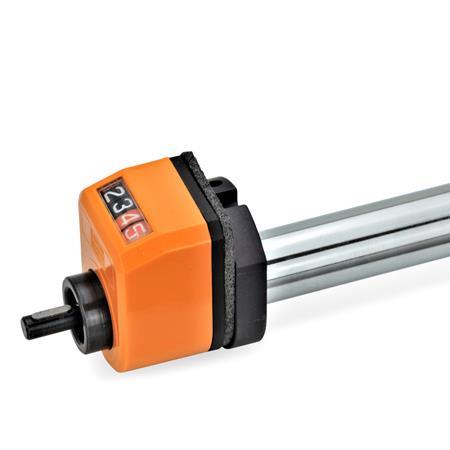

The GN 295 installation kits are needed for mounting a position indicator on linear units. The installation kits comprise an adapter shaft and a torque support including attachment screws.

Order mechanical position indicators GN 953 / GN 954 / GN 955 with a counter pitch that corresponds to that of the trapezoidal threaded spindle.

For position indicators GN 9053 / GN 9054, the position indicator pitch is programmed.

How to order
