Aluminum, with 2 Holes

GN 146.3 Flanged Connector Clamps,

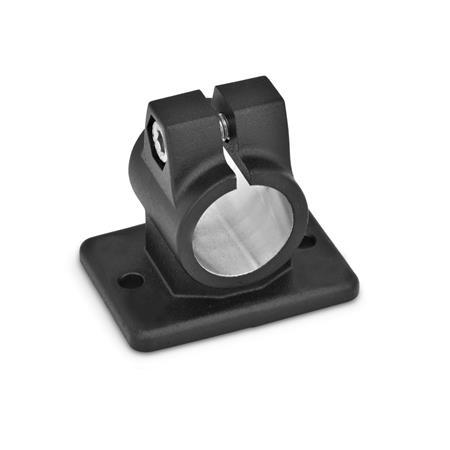

Flanged Connector Clamps GN 146.3 thumbnail

Flanged Connector Clamps GN 146.3 sketch

Identification no.

2	With stainless steel socket cap srew DIN 912

Show filter

d₁ Bore	k Clamping length	d₂	l₁	l₂	m	t	x₁	y₁	y₂	z Screw location	Accessory recom. hand lever GN 911 for z l₃

B 20	40	6,5	62	40	30	7	52	70	53	M8-25	-
B 25	40	6,5	62	40	30	7	52	70	53	M8-25	63 \| 78
B 30	40	6,5	62	40	30	7	52	70	53	M8-25	63 \| 78
B 30	56	8,5	83	56	42	10	78	108	82	M10-35	-
B 32	56	8,5	83	56	42	10	78	108	82	M10-35	-
B 35	56	8,5	83	56	42	10	78	108	82	M10-35	92
B 40	56	8,5	83	56	42	10	78	108	82	M10-35	78 \| 92

Filter combination produces no result.

Specification

Aluminum

Powder coated
Black, RAL 9005, textured finishSW
Plain, Matte shot-blastedBL

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring

Stainless Steel Characteristics

RoHS

Accessory

Adjustable Hand Levers GN 911

On request

With inch bores

Information

The clamping bore of flanged connector clamps GN 146.3 is mechanically machined and designed for construction tubesGN 990 or DIN 2391, DIN 2395 and DIN 2462.

Flanged connector clamps GN 146.3 can also be mounted to profile systems.

At the screw location _z, the socket cap screw reduces the bore cross-section for clamping.

For clamping without tools, the socket cap screw can be replaced by an adjustable hand lever GN 911 listed in the table as accessory.
