with Ball, with Collar, with Internal Hex

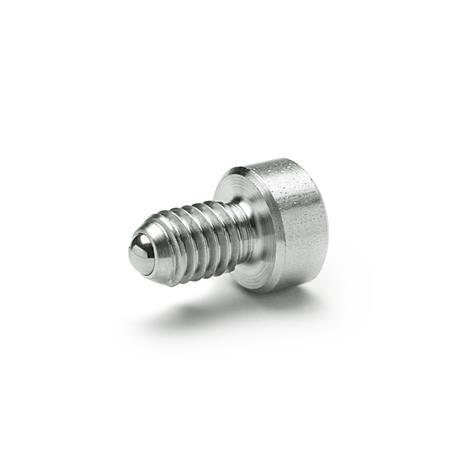

GN 815.1 Stainless Steel Spring Plungers
Type
| NI | Stainless steel, standard spring load |
| NIS | Stainless steel, high spring load |
| d1 | d2 | d3 | l1 | l2 | l3 | w compression | A/F | Spring load in N ≈ standard (Type NI) Initial | End | Spring load in N ≈ high (Type NIS) Initial | End |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 4 | 2,5 | 6 | 9 | 3 | 7,5 | 0,8 | 2 | 8 | 14 | 12 | 18 |
| M 5 | 3 | 8 | 10 | 4 | 8,2 | 0,9 | 2,5 | 8 | 14 | 15 | 22 |
| M 6 | 3,5 | 10 | 10 | 5 | - | 1 | 3 | 11 | 18 | 19,3 | 26,6 |
| M 8 | 4,5 | 13 | 12,5 | 5,5 | - | 1,5 | 4 | 18 | 31 | 36 | 60,5 |
| M 10 | 6 | 16 | 17 | 6 | - | 2 | 5 | 24 | 45 | 57 | 103,5 |
| M 12 | 8 | 18 | 19 | 7 | - | 2,5 | 6 | 26 | 49 | 61 | 110 |
Filter combination produces no result.
Specification
Type NI / NIS
Identification of type NIS:
Housing with 2 longitudinal markings
RoHS
- Housing
Stainless steel AISI 303 - Ball
Stainless steel AISI 420C, hardened
Identification of type NIS:
Housing with 2 longitudinal markings
RoHS
Information
Stainless steel spring plungers GN 815.1 are used as stops as well as thrust elements or ejectors.
The collar gives a defined installation position.
| How to order |
| ||||
GN 815.1-M5-NI |
