GN 828 Bearing Blocks
Type
| A | with thread, mounting from above |
| UA | with groove, mounting from above |
| UB | with groove, mounting from the front |
| d1 Thread Type A | d1 +0,6/+0,4 Bore Type UA / UB | h1 Type A | Type UA | Type UB | b h11 | d2 | h2 | h3 | h4 | k | Length l | m | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 x 1 | 6 | 5 | 10 | 20 | 10 | 15 | 25 | 10 | 15 | 20 | 10 | 4,5 | 6 | 5 | 1,6 | 5,6 | 35 | 22 |
| M 8 x 1 | 8 | 8 | 15 | 20 | 12 | 20 | 30 | 15 | 20 | 30 | 12 | 5,5 | 8 | 6 | 2,6 | 6,6 | 40 | 25 |
| M 10 x 1 | 10 | 10 | 20 | 30 | 15 | 20 | 30 | 20 | 25 | 35 | 15 | 6,5 | 10 | 7,5 | 3,6 | 8,6 | 45 | 30 |
Filter combination produces no result.
Specification
AluminumAM
Matte ground
Reference line
Laser-engraved, black discharged
RoHS
Matte ground
Reference line
Laser-engraved, black discharged
RoHS
Accessory
Stainless Steel Adjusting Screws GN 827Stainless Steel Knurled Nuts GN 827.1
Information

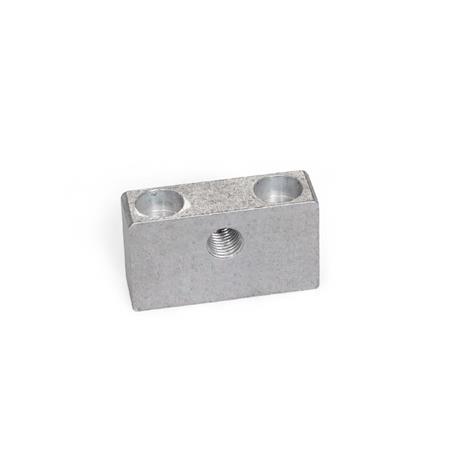

Bearing blocks GN 828 are used in combination with stainless steel adjusting screws GN 827 for simple adjustment and positioning tasks.
For processing and assembly equipment on which attachments and mechanisms must be regularly exchanged, particularly simple adjustments can be achieved by combining adjusting screws GN 827, knurled nuts GN 827.1 and bearing blocks GN 828 of the types UA and UB to ensure that settings are retained even between uses.
On the opposing part, type A or threading already present in the mounting plate can be used.
| How to order |
| ||||||||
GN 828-8-UA-20-AM |
