Length to 500 mm
GN 651 Oil Level Indicators
ELESA Original design HCL.
| l1 | b | d1 | d2 | l2 | l3 | l4 | l5 | l6 | l7 |
|---|---|---|---|---|---|---|---|---|---|
| 300 | 35 | M 12 | 20 | 13,5 | 242 | 326 | 29 | 13 | 28,5 |
| 400 | 35 | M 12 | 20 | 13,5 | 342 | 426 | 29 | 13 | 28,5 |
| 500 | 35 | M 12 | 20 | 13,5 | 442 | 526 | 29 | 13 | 28,5 |
Filter combination produces no result.
Specification
Tube
Plastic
Crystal-clear Acryl (PMMA)
End pieces
Plastic
Technopolymer (Polyamide PA)
U-rail
Aluminum
Anodized, natural color
Transparancy film for reflector
with marking lines
O-rings
Rubber NBR (Perbunan®)
Screws
Steel, zinc plated
RoHS
Plastic
Crystal-clear Acryl (PMMA)
- Temperature resistant up to 70 °C
- Solvent resistant
End pieces
Plastic
Technopolymer (Polyamide PA)
- Glass fibre reinforced
- Black, matte finish
U-rail
Aluminum
Anodized, natural color
Transparancy film for reflector
with marking lines
O-rings
Rubber NBR (Perbunan®)
Screws
Steel, zinc plated
RoHS
On request
Special lengths l1
Information

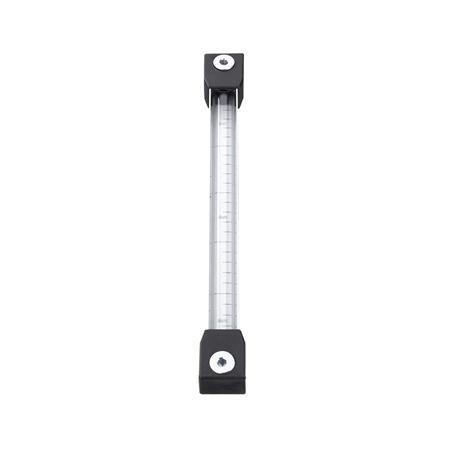

Oil level indicators GN 651 have a long display range, designed specially for heavily fluctuating oil levels.
The crystal-clear plastic tube is plugged into the end pieces together with the aluminium U-rail.
The U-rail can also be rotated by 90°, allowing an angle of vision parallel to the bolt-on surface. The U-rail protects and stabilises the oil level indicator.
These oil level indicators allow the production of special lengths in relatively small quantities.
