Plastic, Horizontally Elongated
GN 237.1 Hinges
ELESA original design CFM-L.
Type
| A | 2x2 bores for countersunk screws |
| l1 elongated on one side | elongated on both sides | l2 | d1 | d2 | h1 | h2 | h3 | h4 ≈ | l3 | l4 | m1 ±0,25 | m2 ±0,25 | m3 | m4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 63 | - | 50 | 6,5 | 6 | 11,5 | 6 | 6,5 | 13 | 18 | 31 | 43 | 30 | 15 | 28 |
| - | 76 | 50 | 6,5 | 6 | 11,5 | 6 | 6,5 | 13 | 31 | 31 | 56 | 30 | 28 | 28 |
| 90 | - | 60 | 6,5 | 8 | 15 | 8 | 8,5 | 17 | 21 | 51 | 63 | 36 | 18 | 45 |
| - | 120 | 60 | 6,5 | 8 | 15 | 8 | 8,5 | 17 | 51 | 51 | 90 | 36 | 45 | 45 |
Filter combination produces no result.
Specification
Plastic (Polyamide PA-HP)
Pin
Stainless steel AISI 303
RoHS
- Glass fiber reinforced
- Temperature resistant up to 140 °C
Black, matte finish
Pin
Stainless steel AISI 303
RoHS
Information

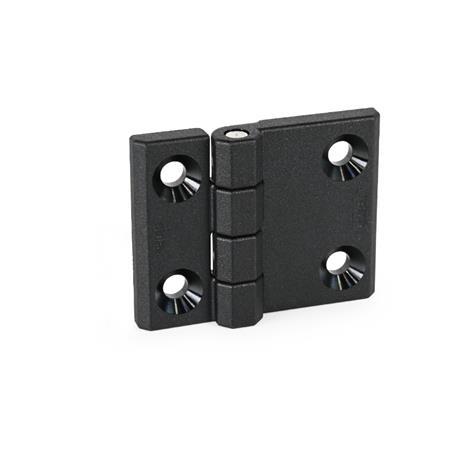

Hinges GN 237.1 with horizontally elongated hinge wings are made in a compact and sturdy design. They are used when larger spacings are required for the fastening holes.
see also...
| How to order |
| ||||||
GN 237.1-76-50-A |
