with Full Extension and Dampened Self-Retracting Mechanism, Load Capacity up to 750 N

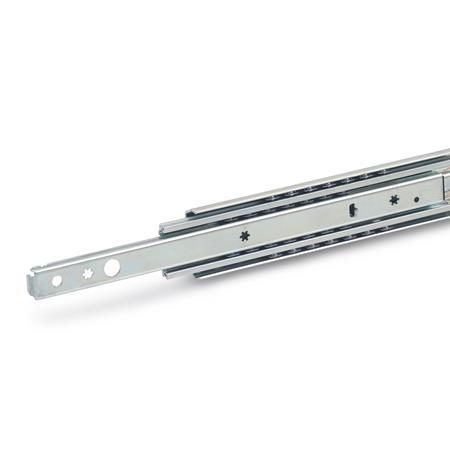

GN 1424 Telescopic Slides

Type

B	With rubber stop

Identification no.

2	Fastening using countersunk holes

Show filter

l₁	l₂ +4/-4 Stroke	l₃	F_s per pair in N at 10,000 cycles	at 100,000 cycles

350	335	685	650	570
400	400	800	750	680
450	451	901	750	750
500	506	1006	750	750
550	555	1105	750	750
600	612	1212	750	750
700	700	1400	750	750

Filter combination produces no result.

Specification

Slide profile
Steel, Zinc plated, blue passivatedZB

Bearings
Roller bearing steel, hardened

Ball cage
Steel, zinc plated

Rubber stop
Plastic / Elastomer

Self-retracting mechanism, dampened
Stainless steel / Plastic

Operating temperature -20 °C to 100 °C

Telescopic Slides - Application Video

Mounting holes to GN 1424

Telescopic Slides - Highlights

Telescopic Slides - General Notes and Overview of Types

Telescopic Slides - Mounting and Technical information

Telescopic Slides - Component Options and Fastening Options

RoHS

On request

Other lengths and hole spacing

Other attachment options

With locking device (front)

Other surfaces

With support bracket

Information

Telescopic slides with dampened self-retracting mechanism GN 1424 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l₁ (full extension).

The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
