Plastic

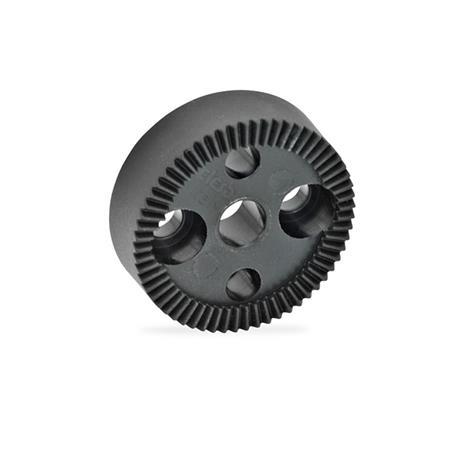

GN 189 Serrated Locking Plates
ELESA original design RDB
Type
| B | with drilling in the center, with two countersunk holes for cap screws |
| D | with drilling in the center, with two hexagon nut for screwing |
| BC | with drilling in the center, with two countersunk holes for cap screws, with a guide |
| DC | with drilling in the center, with two hexagon nut for screwing, with a guide |
| d1 | z Number of teeth | d2 | d3 | d4 | d5 | d6 | d7 | d8 | h1 | h2 | h3 | h4 (2 x h2) | m | A/F | w min. Stroke |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 60 | 23,5 | 6,3 | 5 | 4 | M 4 | 5 | 35,5 | 9,5 | 9 | 8,2 | 18 | 18 | 7 | 1,2 |
| 40 | 60 | 30 | 8,3 | 6 | 5 | M 5 | 6 | 43,5 | 12 | 11,4 | 10,5 | 22,8 | 23 | 8 | 1,3 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA-HP)
Hexagon nuts
Stainless steel AISI 304
RoHS
Technopolymer (Polyamide PA-HP)
- Glass fiber reinforced
- Temperature resistant up to 80 °C
- Black, matte finish
Hexagon nuts
Stainless steel AISI 304
RoHS
Accessory
Thrust Springs GN 187.2Information
With the aid of serrated locking plates GN 189 standard components can be interlocked and firmly set at a defined angle.
Together with the GN 187.2 compression spring, they ensure that the teeth disengage when loosened.
| How to order |
| ||||||
GN 189-32-60-B |
RoHS compliant:
-
-
Weight:
-
-
