Horizontally Elongated

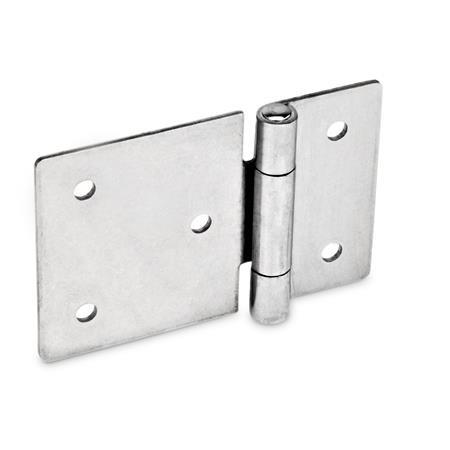

GN 136 Stainless Steel Sheet Metal Hinges
Type
| A | Without bores |
| B | With through-holes |
| C | With countersunk holes |
| l1 on one side elongated | on both sides elongated | l2 | d1 | d2 | d3 | d4 | m1 | m2 | m4 | m5 | s |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | - | 30 | 3 | 3,2 | 4 | 6,4 | 33 | 18 | 9 | 24 | 1,5 |
| - | 60 | 30 | 3 | 3,2 | 4 | 6,4 | 48 | 18 | 9 | 24 | 1,5 |
| 60 | - | 40 | 4 | 4,2 | 5 | 8,3 | 45 | 25 | 12,5 | 32,5 | 2 |
| - | 80 | 40 | 4 | 4,2 | 5 | 8,3 | 65 | 25 | 12,5 | 32,5 | 2 |
| 75 | - | 50 | 6 | 5,2 | 5 | 8,3 | 55 | 30 | 15 | 40 | 2 |
| - | 100 | 50 | 6 | 5,2 | 5 | 8,3 | 80 | 30 | 15 | 40 | 2 |
| 90 | - | 60 | 6 | 5,2 | 5 | 8,3 | 66 | 36 | 18 | 48 | 2 |
| - | 120 | 60 | 6 | 5,2 | 5 | 8,3 | 96 | 36 | 18 | 48 | 2 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 304
Pin
RoHS
Pin
- Stainless steel AISI 304
- Riveted
RoHS
Information
Stainless steel sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications.
Type A can be fixed in place by welding or by using holes made by the customer.
| How to order |
| ||||||||
GN 136-NI-60-40-B |
