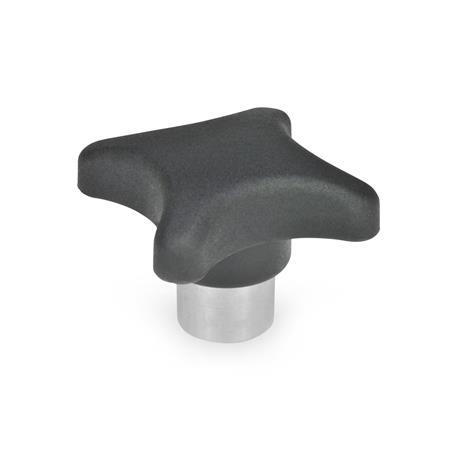

Technopolymer, with Protruding Stainless Steel Bushing
GN 6335.2 Hand Knobs
Type
| E | With threaded blind bore |
| d1 | d2 | d4 | h1 | h2 ≈ | h3 | t min. |
|---|---|---|---|---|---|---|
| 32 | M 6 | 12 | 20 | 10 | 9 | 12 |
| 40 | M 8 | 14 | 25 | 13 | 10 | 14 |
| 50 | M 10 | 18 | 32 | 20 | 12 | 18 |
| 63 | M 12 | 20 | 40 | 25 | 14 | 22 |
| 80 | M 16 | 25 | 50 | 30 | 17 | 30 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polyamide PA)
Bushing
Stainless steelNI AISI 303
RoHS
Technopolymer (Polyamide PA)
- Shock-resistant
- Black, matte
Bushing
Stainless steelNI AISI 303
RoHS
Information
Hand knobs GN 6335.2 with protruding stainless steel bushing have important advantages:
The face of the bushing is exactly square to the bore and is with the complete diameter out of stainless steel. The protruding stainless steel bushing allows a perfect cross-dowels connection.
| How to order |
| ||||||||
GN 6335.2-32-M6-E-NI |
