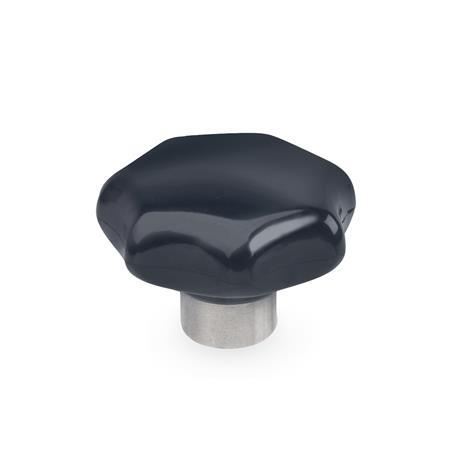

Duroplast, with Protruding Stainless Steel Bushing
GN 6336.1 Star Knobs
Type
| E | With threaded blind bore |
| d1 | d2 | d4 | h1 | h2 | h3 | t min. |
|---|---|---|---|---|---|---|
| 32 | M 6 | 12 | 21 | 10 | 8,5 | 12 |
| 40 | M 8 | 14 | 26 | 13 | 10 | 14 |
| 50 | M 10 | 18 | 34 | 17 | 10 | 18 |
| 63 | M 12 | 20 | 42 | 21 | 14 | 22 |
| 80 | M 16 | 25 | 52 | 25 | 15 | 30 |
Filter combination produces no result.
Specification
Plastic
Duroplast (PF)
Black, shiny
Bushing
Stainless steelNI AISI 303
RoHS
Duroplast (PF)
Black, shiny
Bushing
Stainless steelNI AISI 303
RoHS
Information
Star knobs GN 6336.1 with all stainless steel bushing (main dimensions of DIN 6336) have important advantages:
The face of the bushing is exactly square to the bore and is with the complete diameter out of stainless steel. The protruding stainless steel bushing allows a perfect cross-dowels connection.
| How to order |
| ||||||||
GN 6336.1-50-M10-E-NI |
